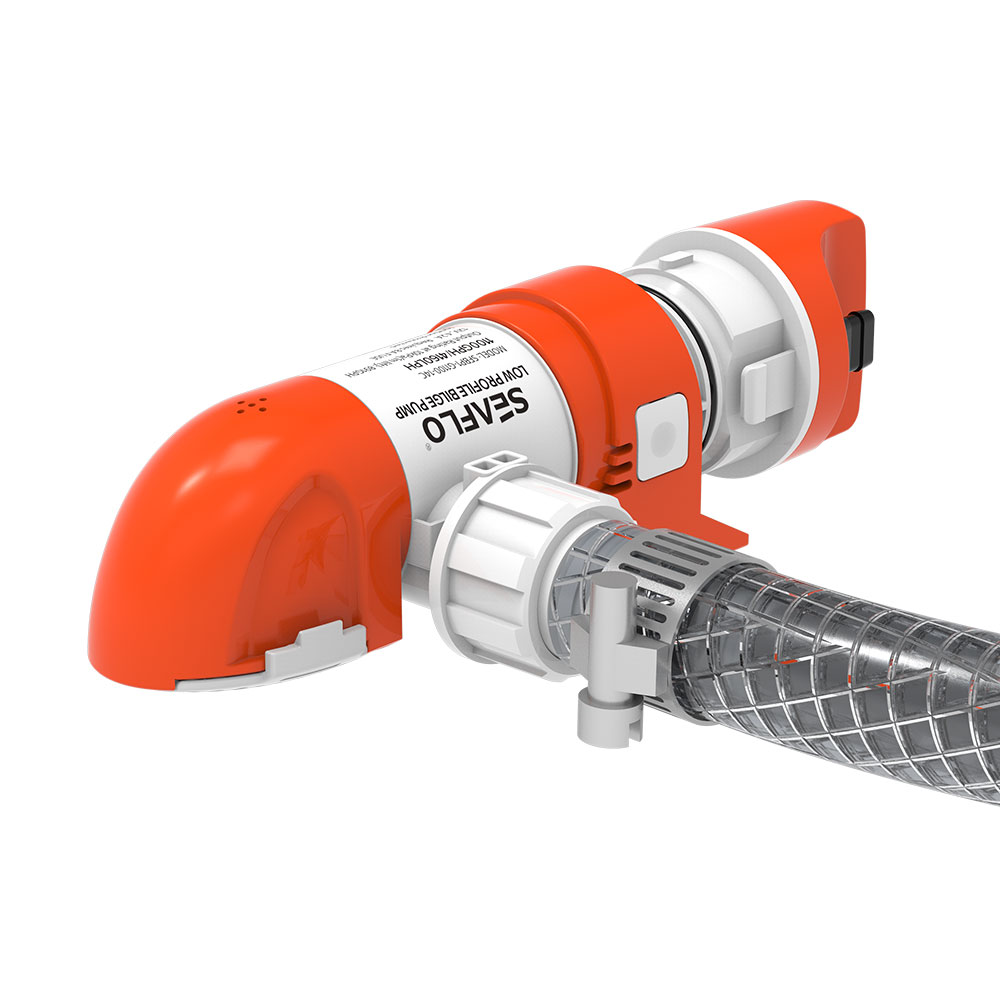

Automatic bilge Pump，boat bilge pump,Horizontal Submersible Pump
Voltage：12V / 24V
Flow Rate：800/1100 GPH
Outlet Dia：3/4" (19mm) 1" (25mm) 1-1/8" (29mm)
Application Scenarios：Marine

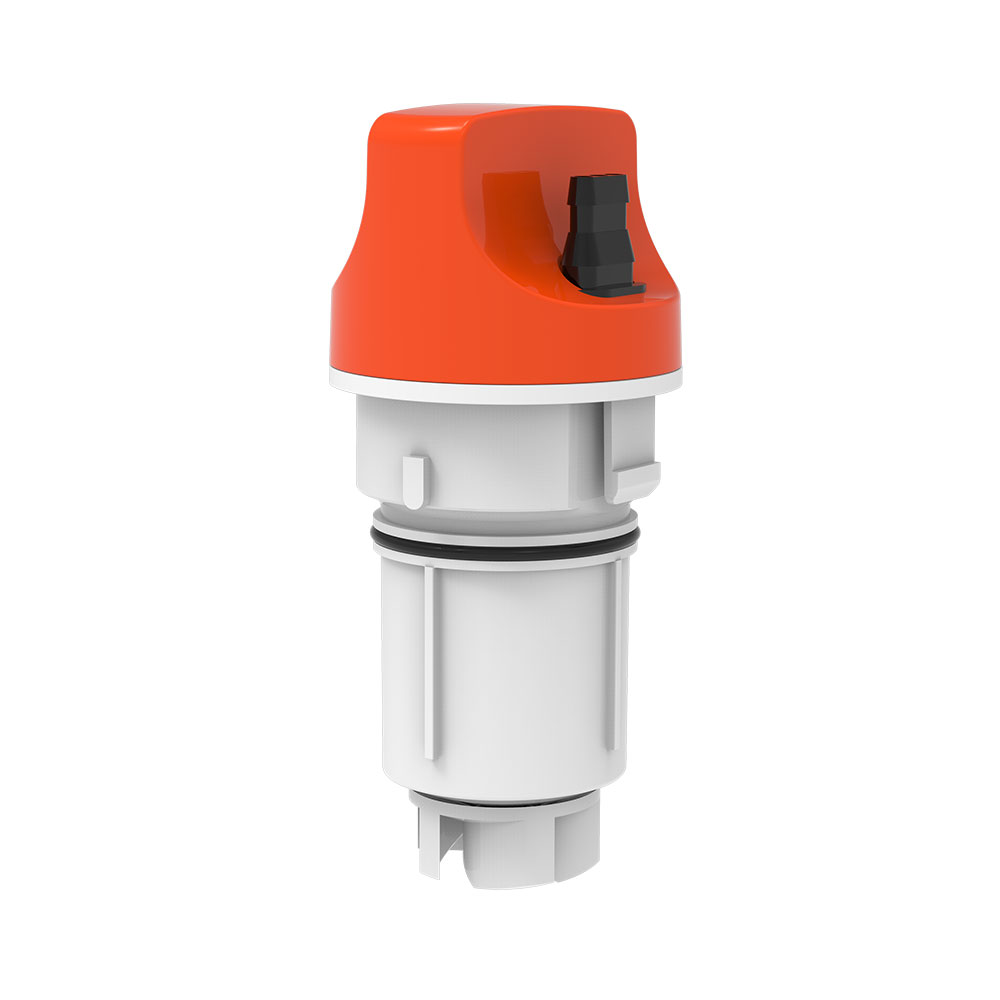

Motor：Cartridge Pump Replacement Motors(sold separately)

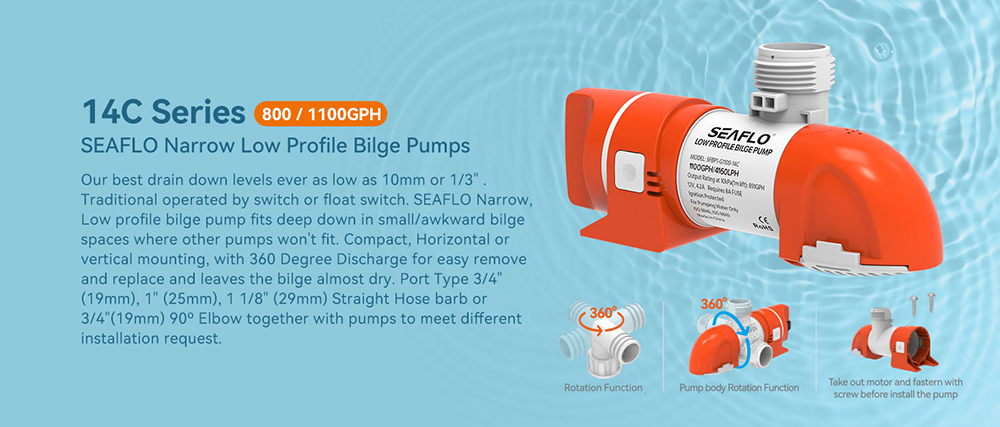

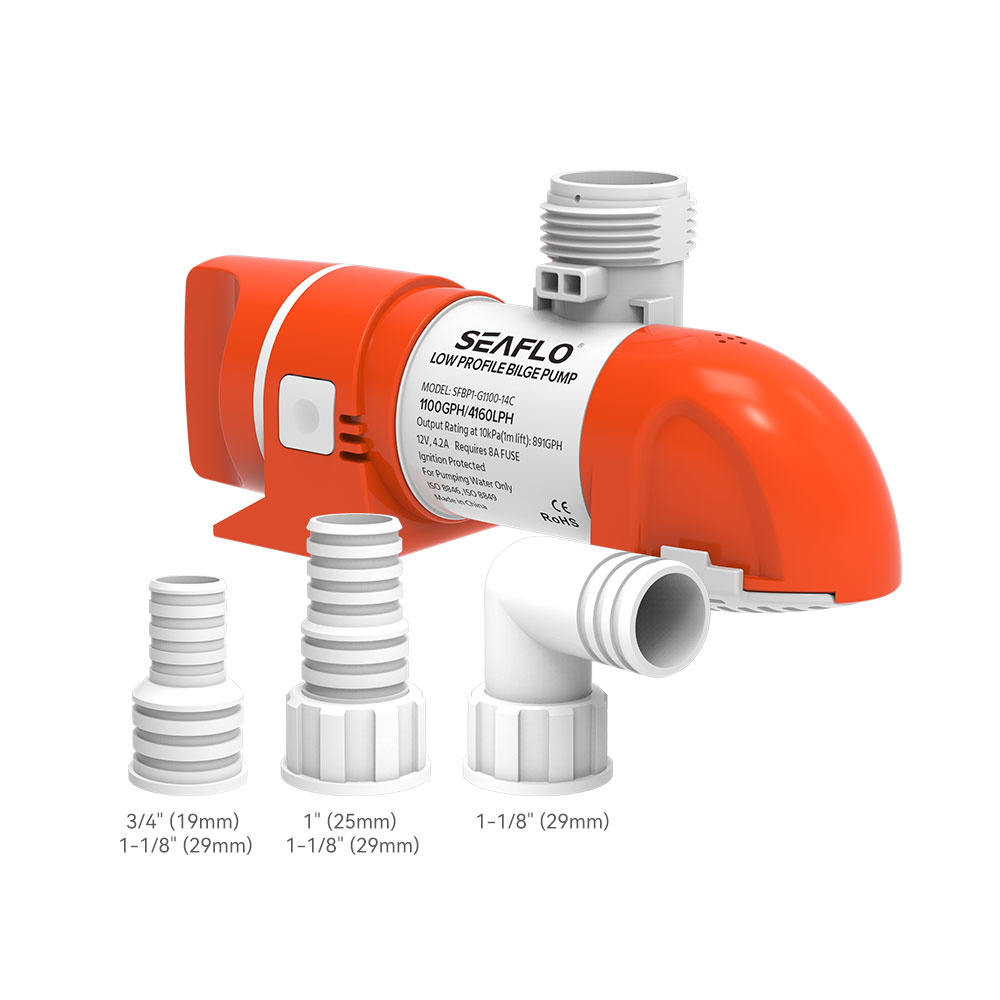

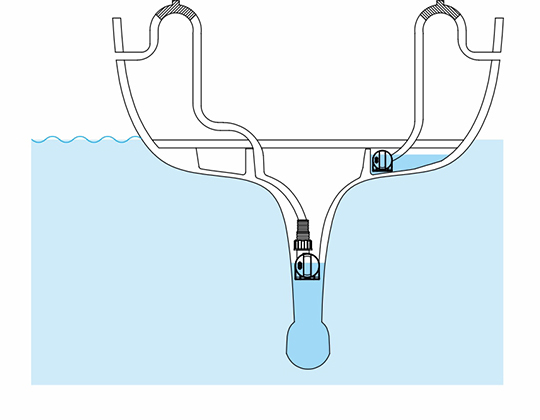

Our best drain down levels ever as low as 10mm or 1/3”. Traditional operated by switch or float switch. SEAFLO Narrow, Low profile bilge pump fits deep down in small/awkward bilge spaces where other pumps won't fit. Compact, Horizontal or vertical mounting, with 360 Degree Discharge for easy remove and replace and leaves the bilge almost dry. Port Type 3/4" (19mm), 1" (25mm), 1 1/8" (29mm) Straight Hose barb or 3/4"(19mm) 90° Elbow together with pumps to meet different installation request.

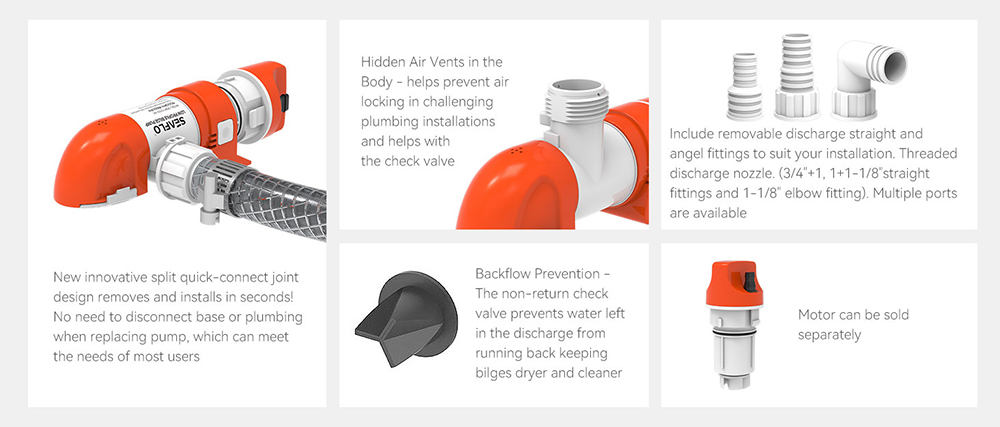

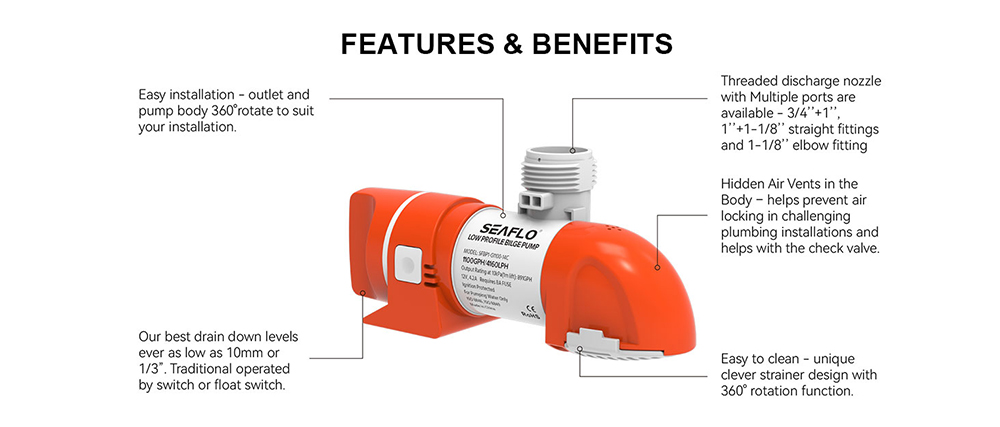

MORE FEATURES & BENEFITS

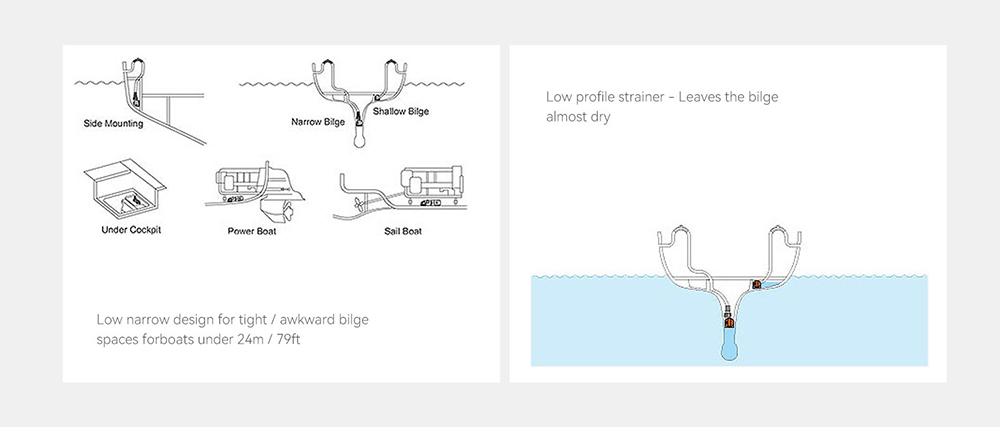

• Low narrow design for tight/awkward bilge spaces

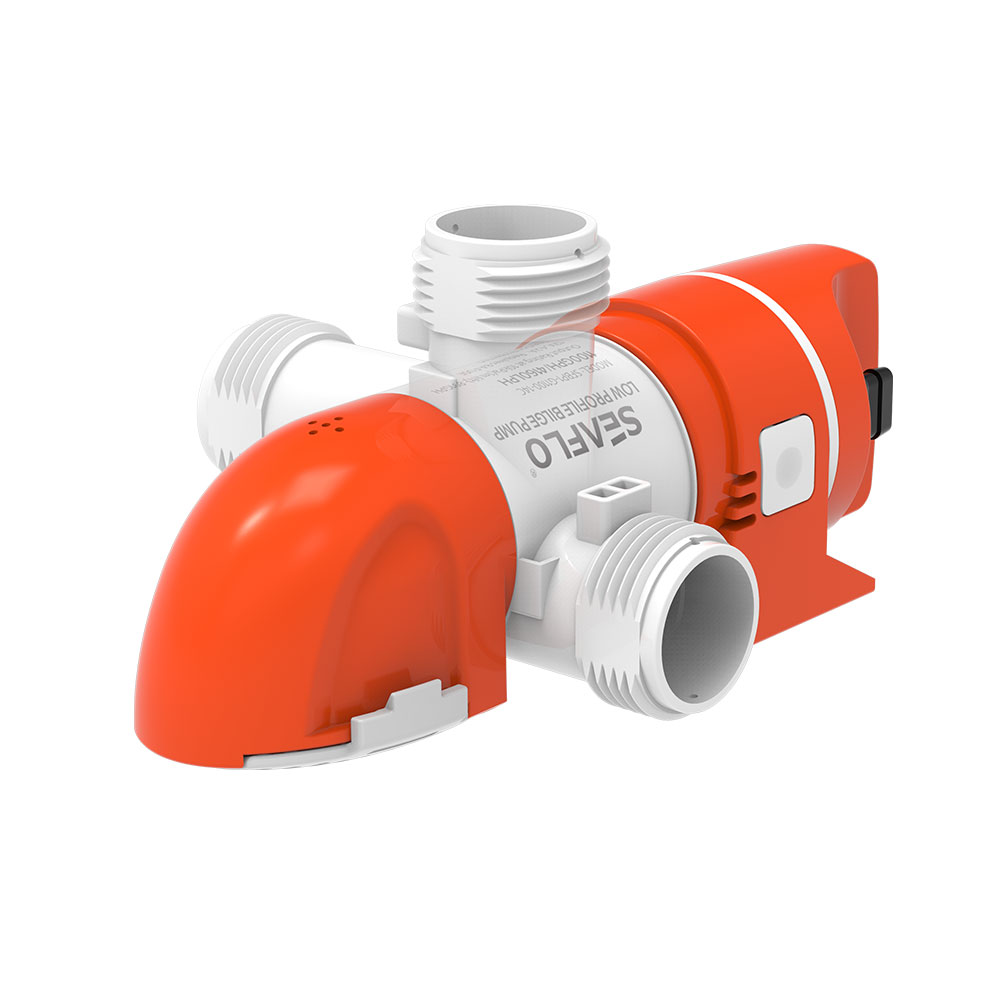

• Easy installation - outlet and pump body 360º rotate to suit your installation
• Efficient operation - Very low power consumption
• Low profile strainer - Leaves the bilge almost dry
• Easy to clean- snap fit assembly easy to remove and replace for cleaning
• Includes check valve to prevent water back-flow
• CE, RoHS, ISO 8846, ISO8849 standards
• Submersible and ignition protected
• Sealed efficient, long life motors, quiet operation
• Exclusive moisture tight seals
• Motor can be sold separately
• Traditional operated by switch or float switch.
• Stainless-steel motor shaft
• Marine grade silicon blocked, tin coated wiring
• Anti-Airlock protection
• Five-blade impeller to ensure high flow rate
• 2 Year Warranty

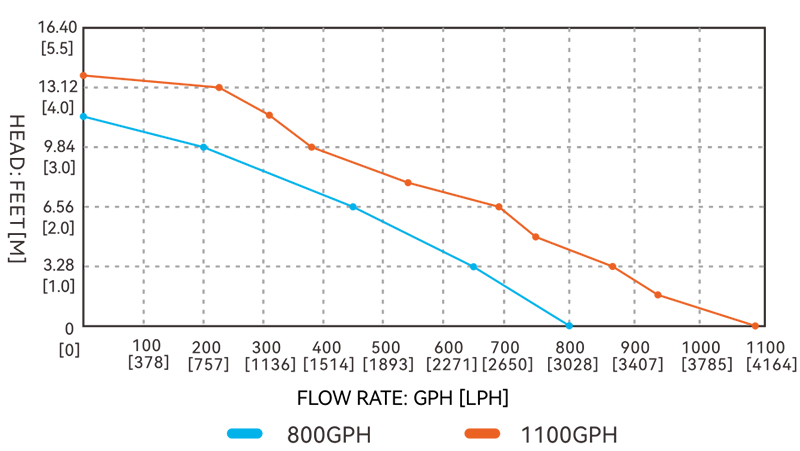

STANDARD PUMP CONFIGURATIONS
| Model | Flow rate | Volts | Current | Head | Mode of Operation |
SFBP1-G800-14C | 800GPH | 12V | 3.2A | 3.2m/10.5' | manual mode |
SFBP2-G800-14C | 800GPH | 24V | 2.0A | 3.2m/10.5' | |
SFBP1-G1100-14C | 1100GPH | 12V | 4.2A | 4.0m/13' | |
SFBP2-G1100-14C | 1100GPH | 24V | 3.0A | 4.0m/13' |
SHIPPING INFORMATION
Unit Weight | 0.77 lbs (0.35 kg) |
Selling Unit Size (L x W x H) | 7.87" x 5.31" x 2.56" (20 x 13.5 x 6.5 cm) |
Selling Unit Weight | 1.12 lbs (0.51 kg) |
Master Carton Size (L x W x H) | 22.05" x 16.14" x 11.22" (56 x 41 x 28.5 cm) |
Master Carton Qty | 32 pcs |
Master Carton Weight | 38.58 lbs (17.5 kg) 41.45 lbs (18.8 kg) |
Master Carton Volume | 0.065 m³ |
