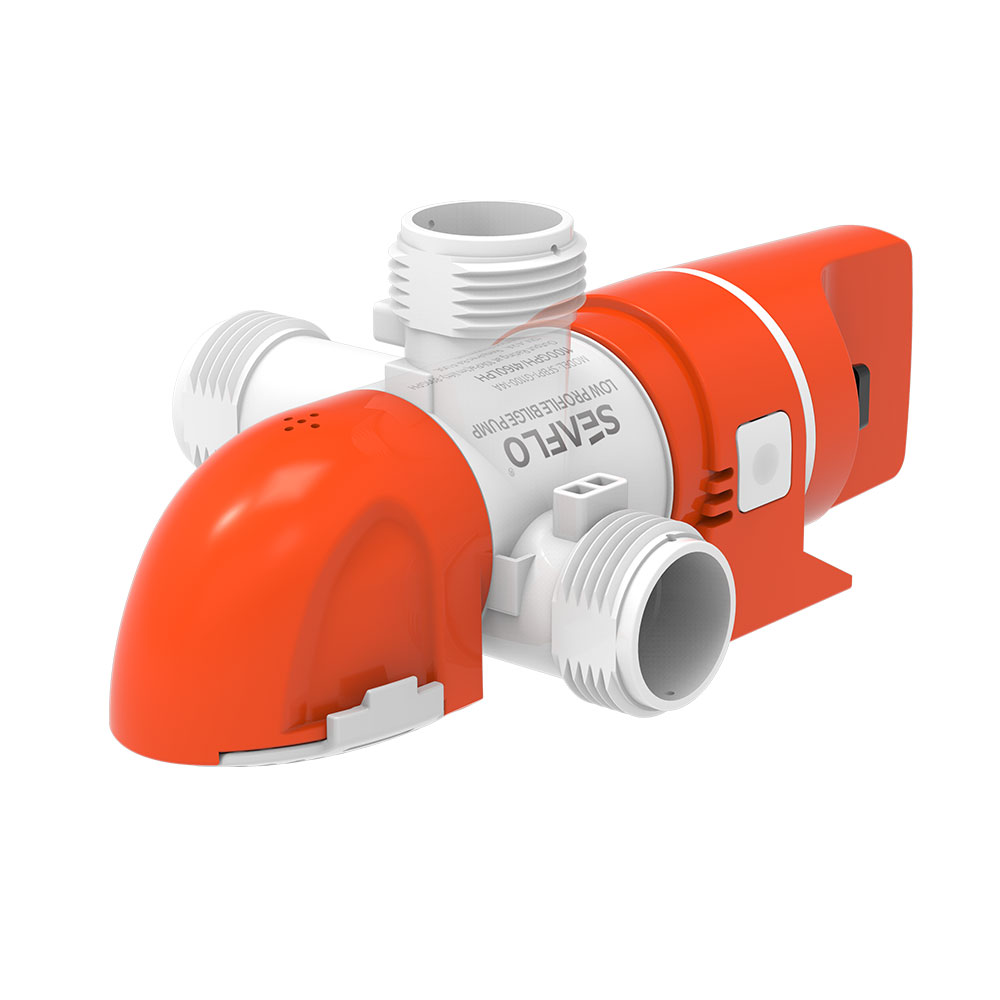

Submersible Pump，12v bilge pump，boat bilge pump
Voltage：12V / 24V
Flow Rate：800/1100 GPH

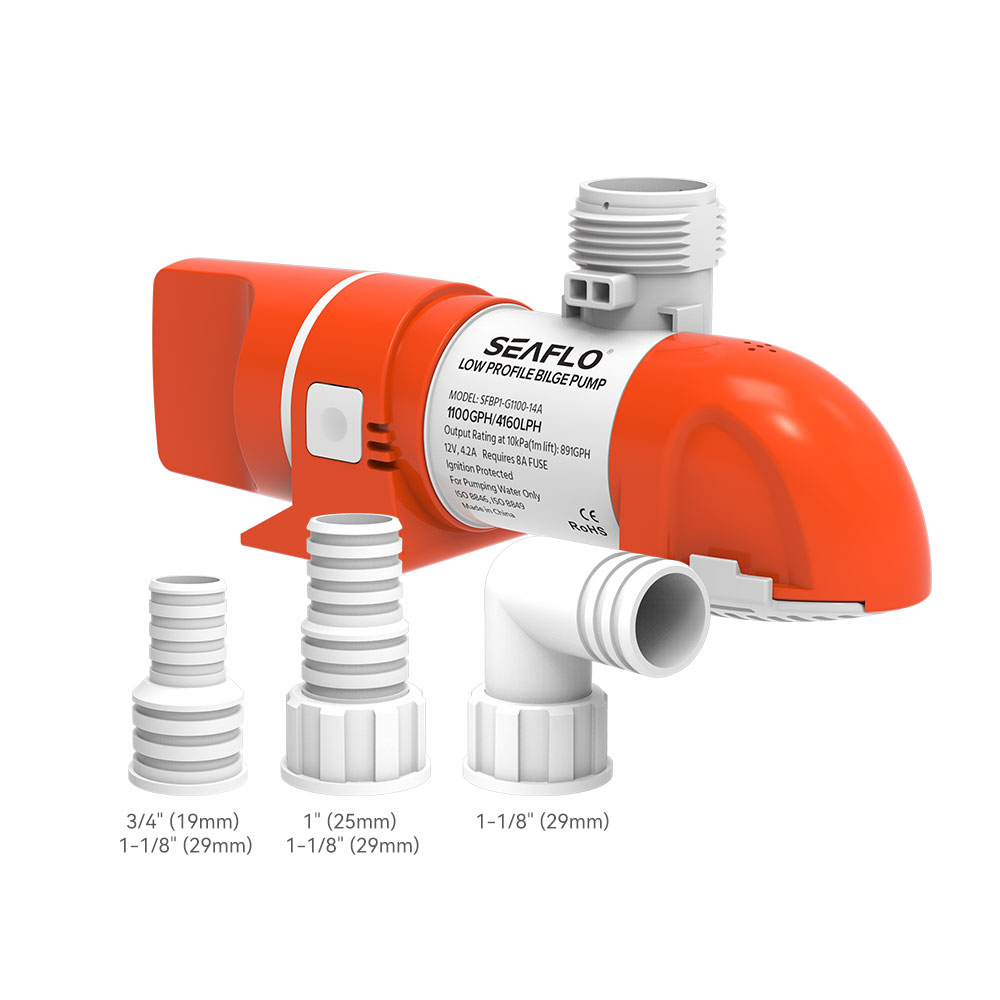

Outlet Dia：3/4" (19mm) 1" (25mm) 1-1/8" (29mm)
Application Scenarios：Marine

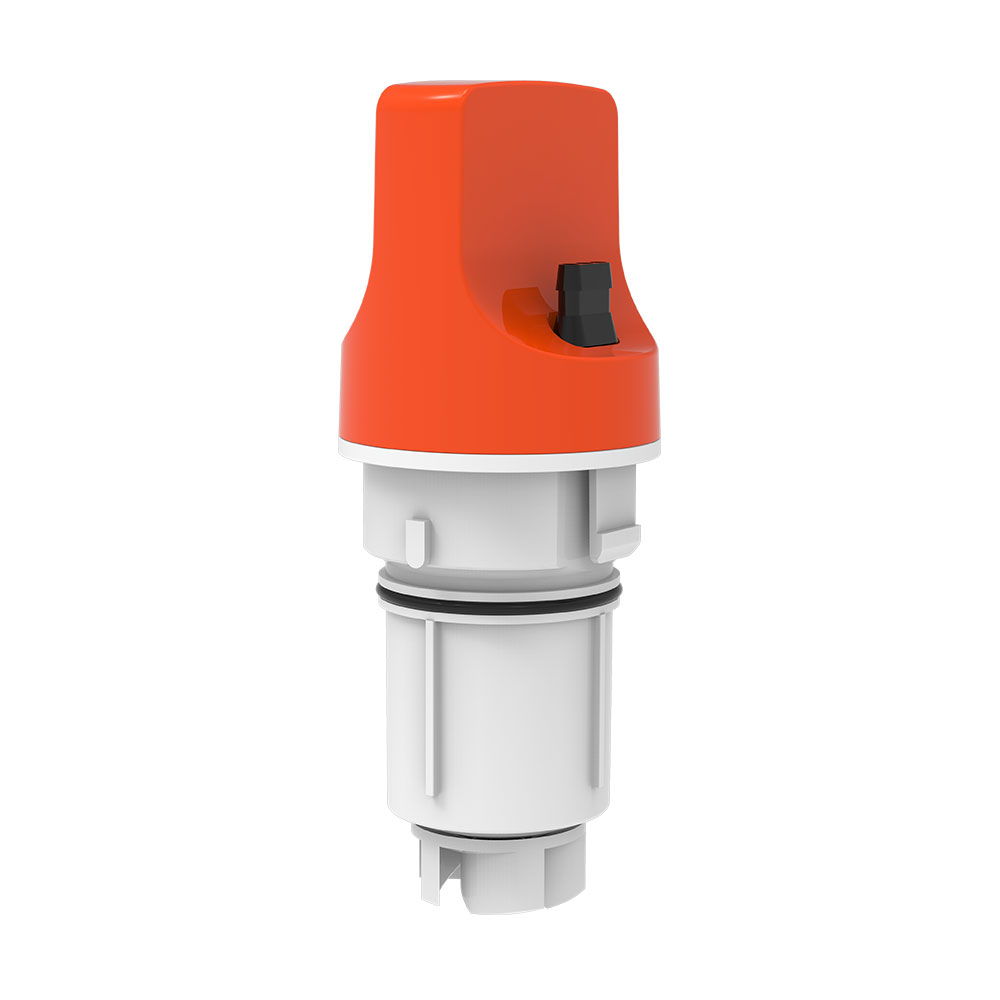

Motor：Cartridge Pump Replacement Motors(sold separately)

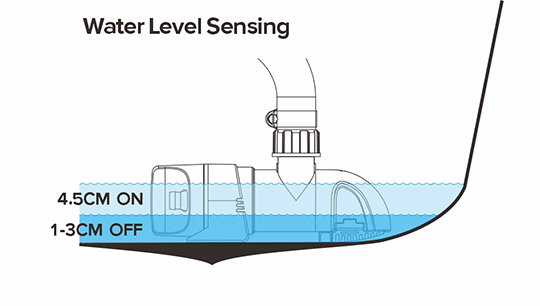

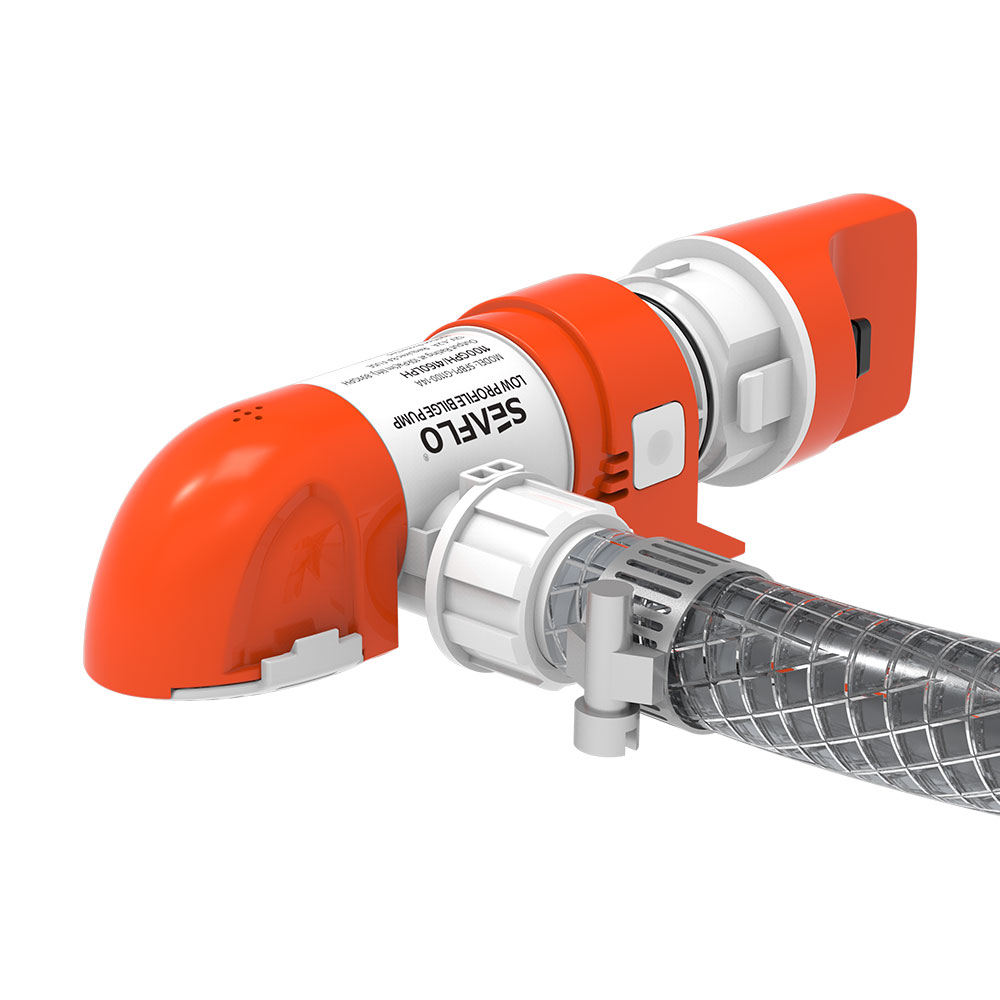

Our best drain down levels ever as low as 10mm or 1/3’’. SEAFLO Narrow, Low profile bilge pump fits deep down in small/awkward bilge spaces where other pumps won't fit. Compact, Horizontal or vertical mounting, with 360 Degree Discharge for easy remove and replace and leaves the bilge almost dry. Port Type 3/4" (19mm), 1" (25mm), 1 1/8" (29mm) Straight Hose barb or 3/4"(19mm) Our best drain down levels ever as low as 10mm or 1/3’’. SEAFLO Narrow, Low profile bilge pump fits deep down in small/awkward bilge spaces where other pumps won't fit. Compact, Horizontal or vertical mounting, with 360 Degree Discharge for easy remove and replace and leaves the bilge almost dry. Port Type 3/4" (19mm), 1" (25mm), 1 1/8" (29mm) Straight Hose barb or 3/4"(19mm) 90° Elbow together with pumps to meet different installation request. Automatic turns on and off when water rise down.

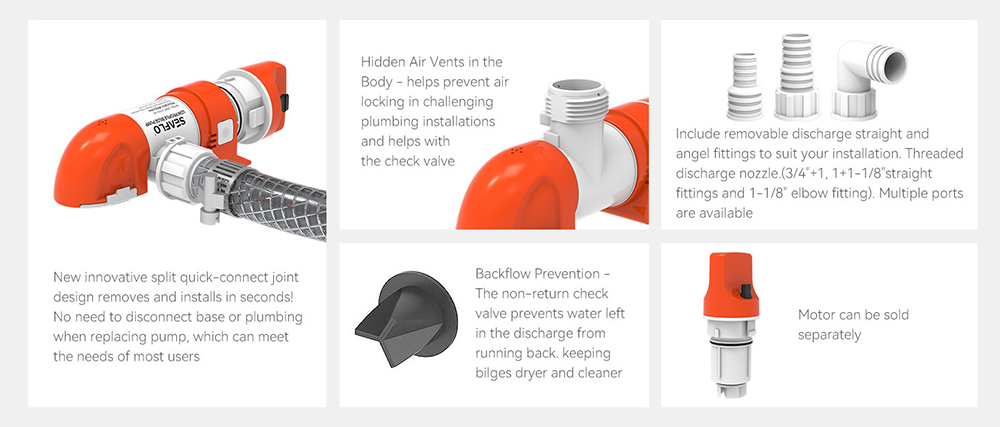

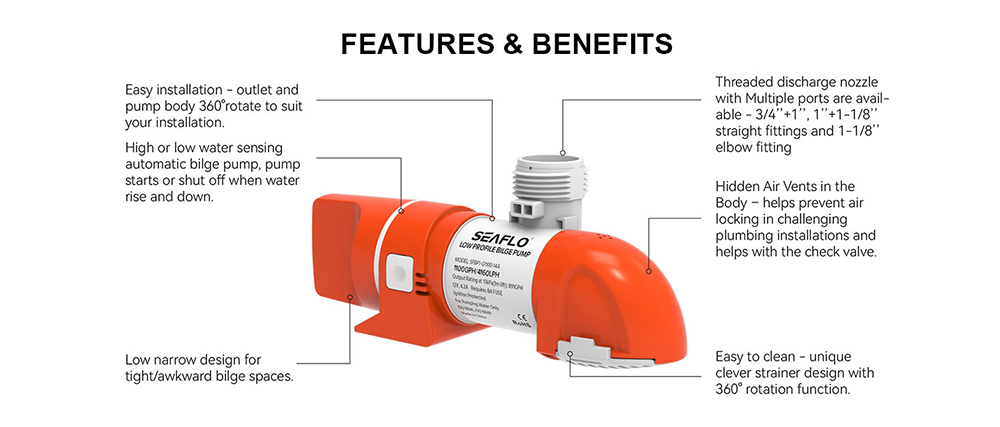

MORE FEATURES & BENEFITS

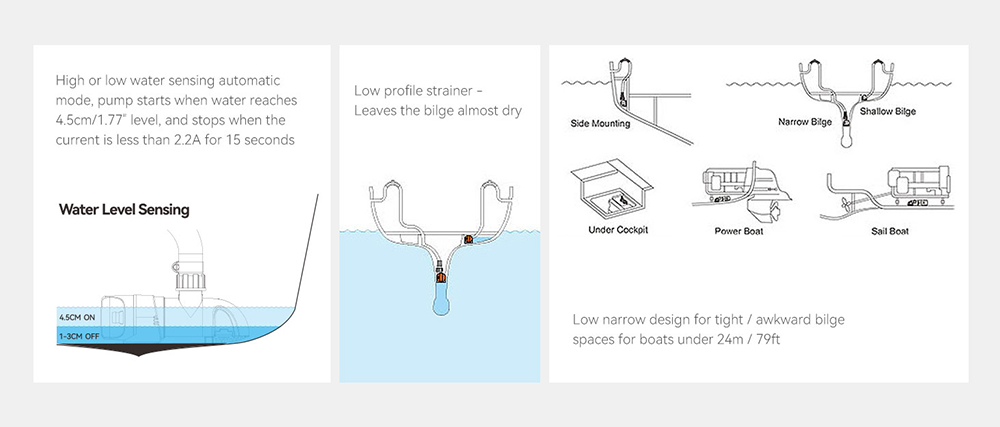

• Low narrow design for tight/awkward bilge spaces

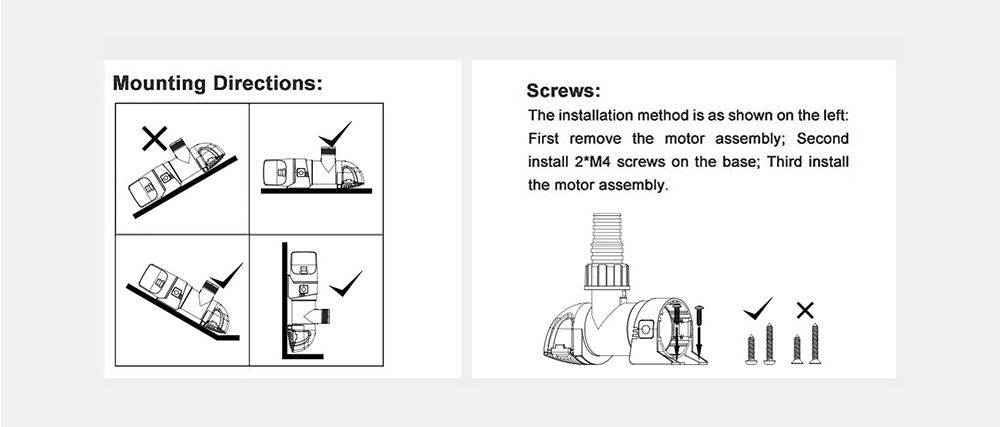

• Easy installation - outlet and pump body 360º rotate to suit your installation
• Efficient operation - Very low power consumption
• Low profile strainer - Leaves the bilge almost dry
• Easy to clean- snap fit assembly easy to remove and replace for cleaning
• Includes check valve to prevent water back-flow
• CE, RoHS, ISO 8846, ISO8849 standards
• Sealed efficient, long life motors, quiet operation
• Exclusive moisture tight seals
• Motor can be sold separately
• Marine grade silicon blocked, tin coated wiring
• Stainless-steel motor shaft
• Five-blade impeller to ensure high flow rate
• Anti-Airlock protection
• 2 Year Warranty

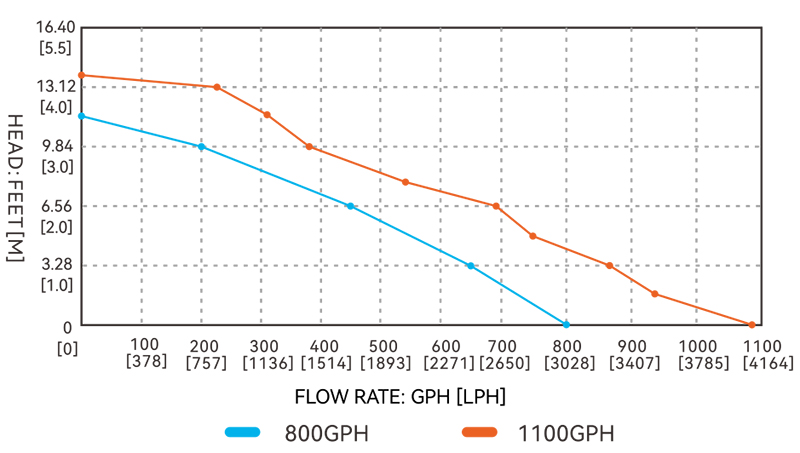

STANDARD PUMP CONFIGURATIONS
Model | Flow rate | Volts | Current | Head | Mode of Operation |
SFBP1-G800-14A | 800GPH | 12V | 3.2A | 3.2m/10.5' | automatic water level sensor |
SFBP2-G800-14A | 800GPH | 24V | 2.0A | 3.2m/10.5' | |
SFBP1-G1100-14A | 1100GPH | 12V | 4.2A | 4.0m/13' | |
SFBP2-G1100-14A | 1100GPH | 24V | 3.0A | 4.0m/13' |
SHIPPING INFORMATION
Unit Weight | 0.86 lbs (0.39 kg) |
Selling Unit Size (L x W x H) | 8.66" x 5.31" x 2.56" (22 x 13.5 x 6.5 cm) |
Selling Unit Weight | 1.23 lbs (0.56 kg) |
Master Carton Size (L x W x H) | 22.05" x 17.72" x 11.22" (56 x 45 x 28.5 cm) |
Master Carton Qty | 32 pcs |
Master Carton Weight | 43 lbs (19.5 kg) |
Master Carton Volume | 0.072 m³ |
