Standard rectangular portlight
Frame Size：14.5"x7.6"(369*193mm)
Cut-out Size：13.7"x6.7"(347x171mm)
Height：1.8"(42.5mm)
Deck Thickness：1.7"(44mm)
Color：Silvery
Model：SFP1-369-05
Frame material : Aluminium Alloy Surface Treatment :Anodized Glass Material : Acrylic Handle Material : Nylon
MORE FEATURES & BENEFITS
• Frame material : Aluminium Alloy
• Surface Treatment :Anodized
• Glass Material : Acrylic
• Handle Material : Nylon
STANDARD CONFIGURATIONS
Model | Frame Size | Cut-out Size | Height | Deck Thickness | Deck Thickness | Color | Geometry |

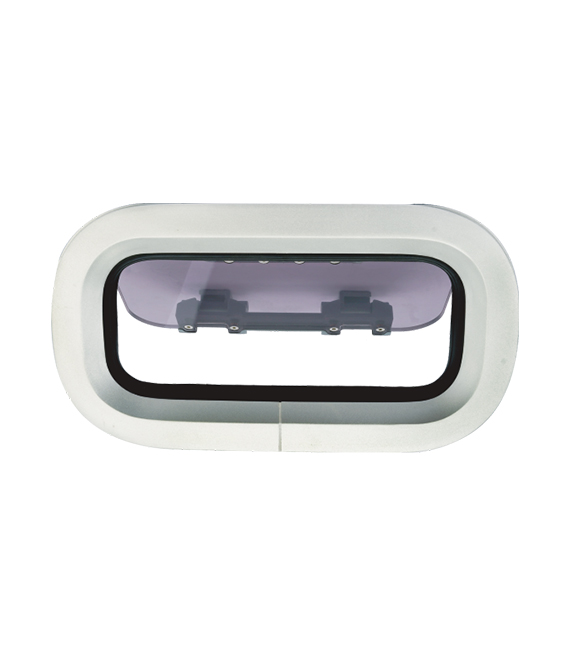

SFP1-369-05 | 14.5"x7.6"(369*193mm) | 13.7"x6.7"(347x171mm) | 1.8"(42.5mm) | 1.7"(44mm) | 1.2"(31mm) | Silvery | Oval |

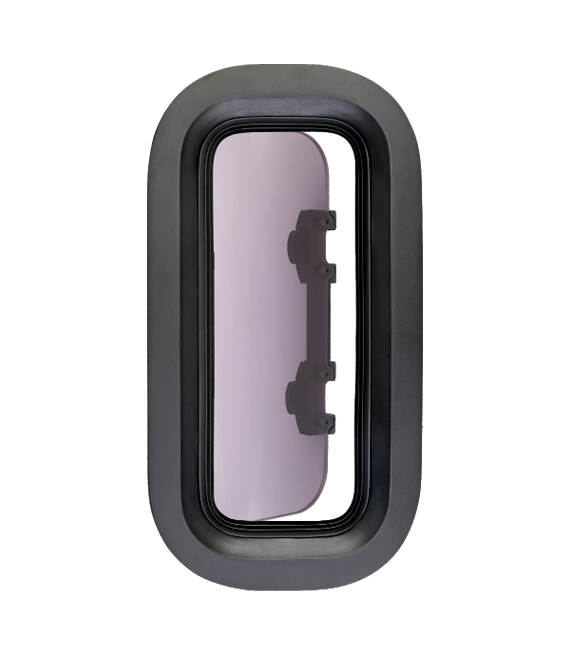

SFP2-369-05 | 15.6"x7.8"(397x197mm) | 13.7"x6.7"(347x171mm) | 1.8"(42.5mm) | 1.7"(44mm) | 1.2"(31mm) | Black | Oval |

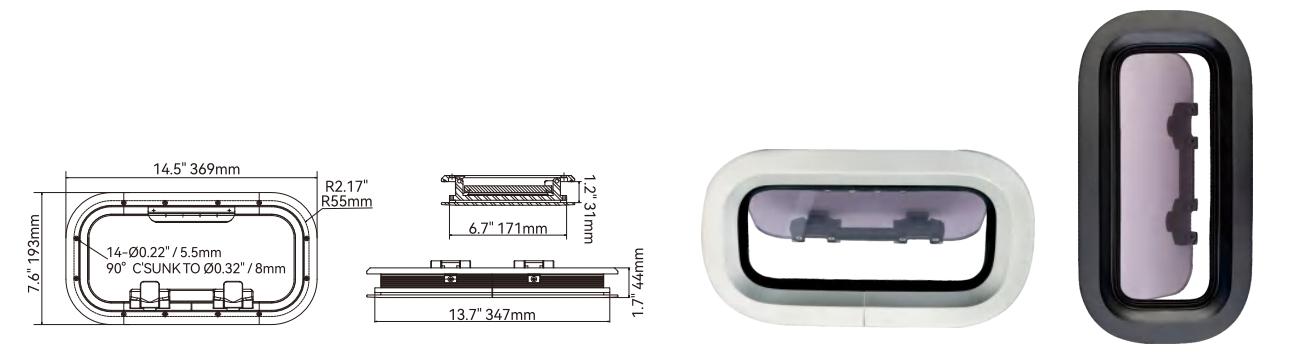

DIMENSIONS
SFP1-369-05/SFP2-369-05
SHIPPING INFORMATION
SFP1-369-05/SFP2-369-05
Unit Weight | 4.4 lbs(1.98 kg) |
Selling Unit Size (L x W x H) | 17.72" x 8.66" x 2.76" （45 x 22 x 7 cm） |
Selling Unit Weight | 4.59 lbs(2.08 kg) |
Master Carton Size (L x W x H) | 18.50" x 9.45" x 6.69" (47 x 24 x 17cm) |
Master Carton Qty | 2 pcs |
Master Carton Weight | 10.63 lbs (4.82 kg) |
Master Carton Volume | 0.019 m³ |
