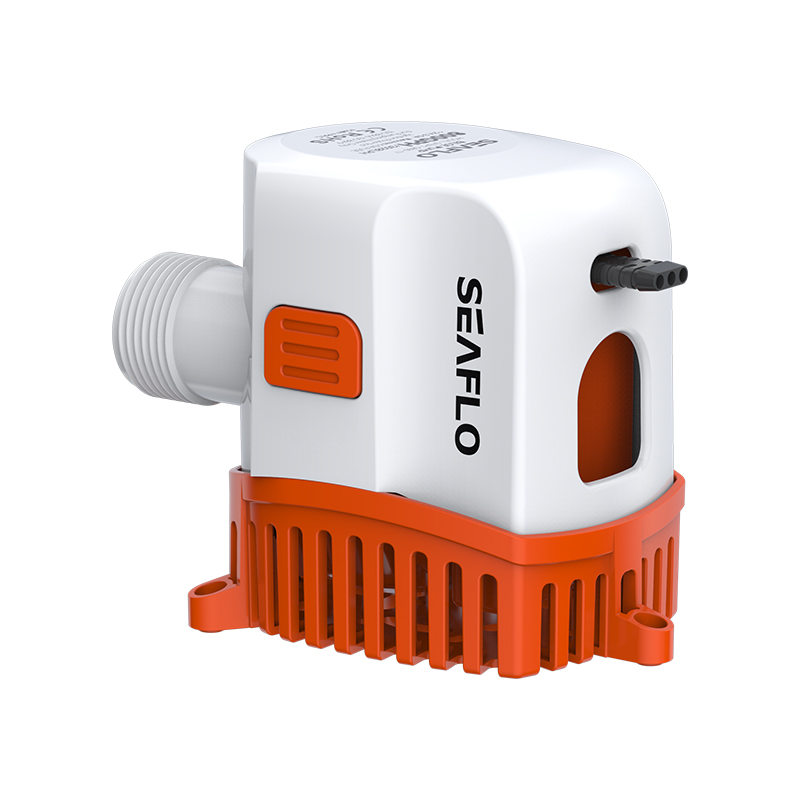

small submersible water pump ，boat bilge pump , 12V/24V submersible pump
Voltage：12V
Flow Rate：800 GPH
Outlet Dia：3/4"(19mm) and 1-1/8"(29mm)
Application Scenarios：Marine,Yachts, Boats
Model：SFBP1-G800-17
The SEAFLO bilge pump has been carefully designed to exhaust standing water only. These pumps are not intended for damage control. Bilge pump capacities may not be sufficient to prevent flooding from rapid accumulation of water due to storms, rough weather and/or rapid leaks created by hull damages and/or unsafe navigational conditions.

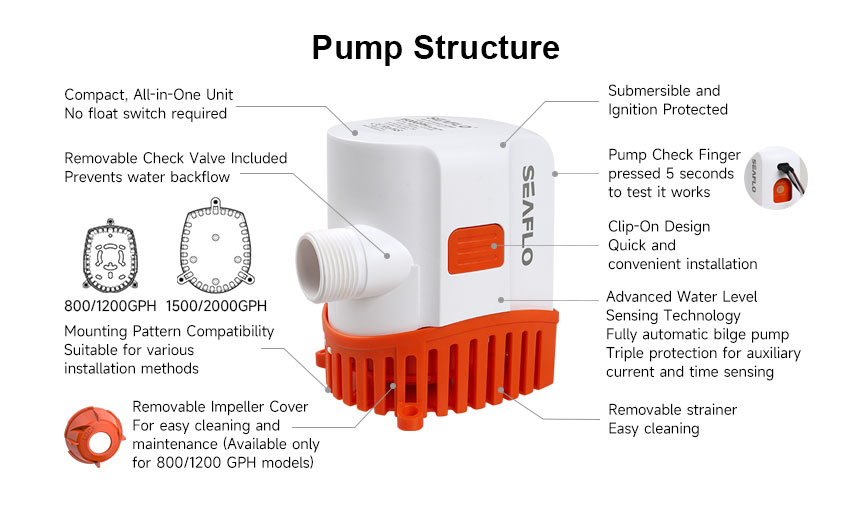

MORE FEATURES & BENEFITS
• Compact, all-in-one unit

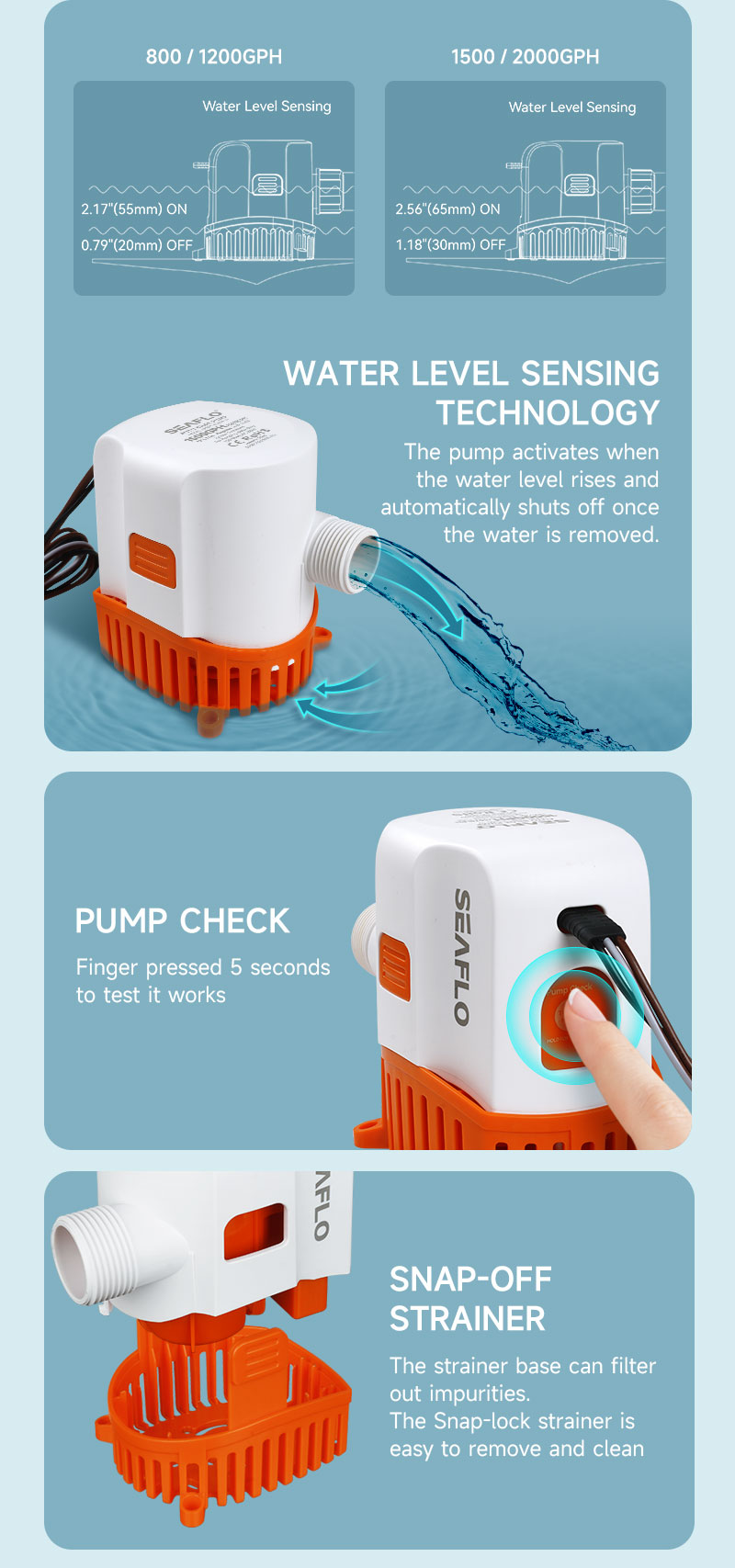

• Advanced capacitive coupling sensing technology
• Pump turns on when water level rises and shuts off when water is removed
• No float switch required
• Snap-off strainer for easy cleaning

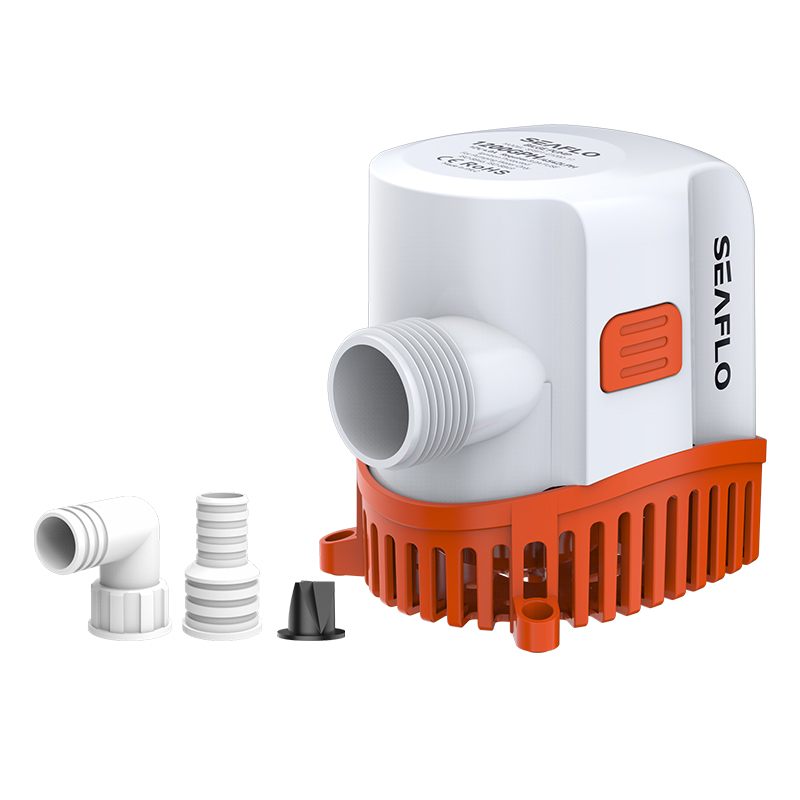

• Removable check valve included as standard
• Submersible and ignition protected
• Quick and easy installation
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Current | Head | Outlet diameter |
| SFBP1-G800-17 | 800 GPH | 12 V | 3.0 A | 2.5m / 8' | 3/4"(19mm) 1-1/8"(29mm) |
SFBP2-G800-17 | 800 GPH | 24 V | 1.5 A | 2.5m / 8' | |
| SFBP1-G1200-17 | 1200 GPH | 12 V | 4.0 A | 3m / 10' | 1"(25mm) 1-1/8"(29mm) |
SFBP2-G1200-17 | 1200 GPH | 24 V | 2.0 A | 3m / 10' |
SHIPPING INFORMATION
Unit Weight | 0.637 kg（14.04 lbs） |

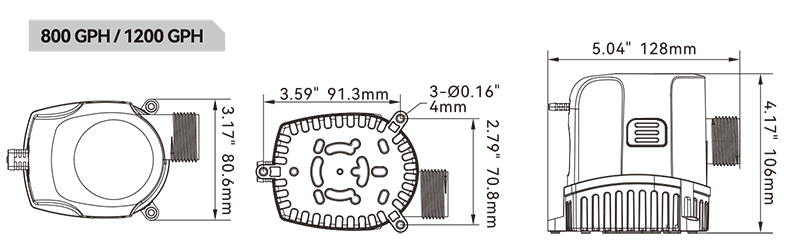

Selling Unit Size (L x W x H) | 12.8 x 8.1 x 10.8 cm （5.04" x 3.19" x 4.25" ） |
Selling Unit Weight | 0.637 kg（14.04 lbs） |
Master Carton Size (L x W x H) | 45.5 x 39.5 x 38.5 cm （17.91" x 15.55" x 15.16"） |
Master Carton Qty | 27 pcs |
Master Carton Weight | 18.7 kg（41.16 lbs） |
Master Carton Volume | 0.06919 m³ |
