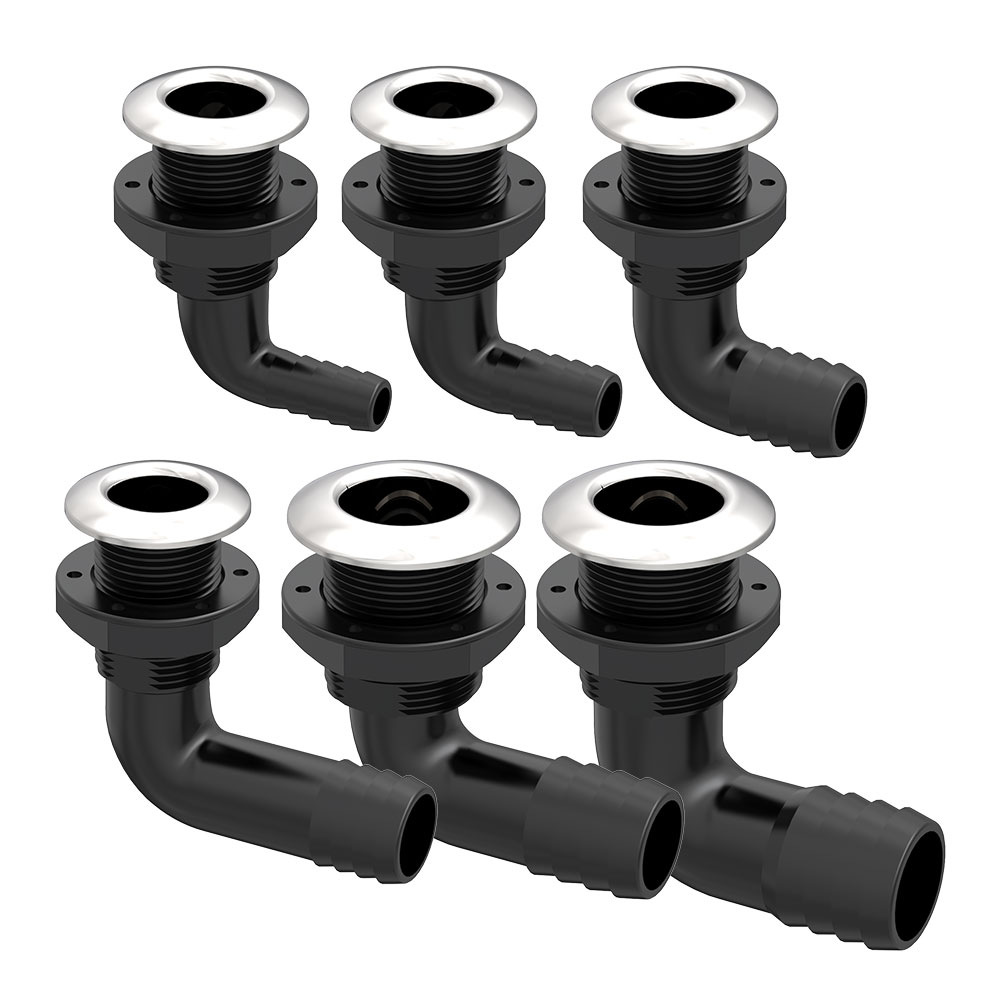

Size：5/8”、 3/4”、 1”、 1-1/8” 、1-1/4” 、1-1/2”
Material：Nylon+GF (316 Stainless steel cover)
Color：black

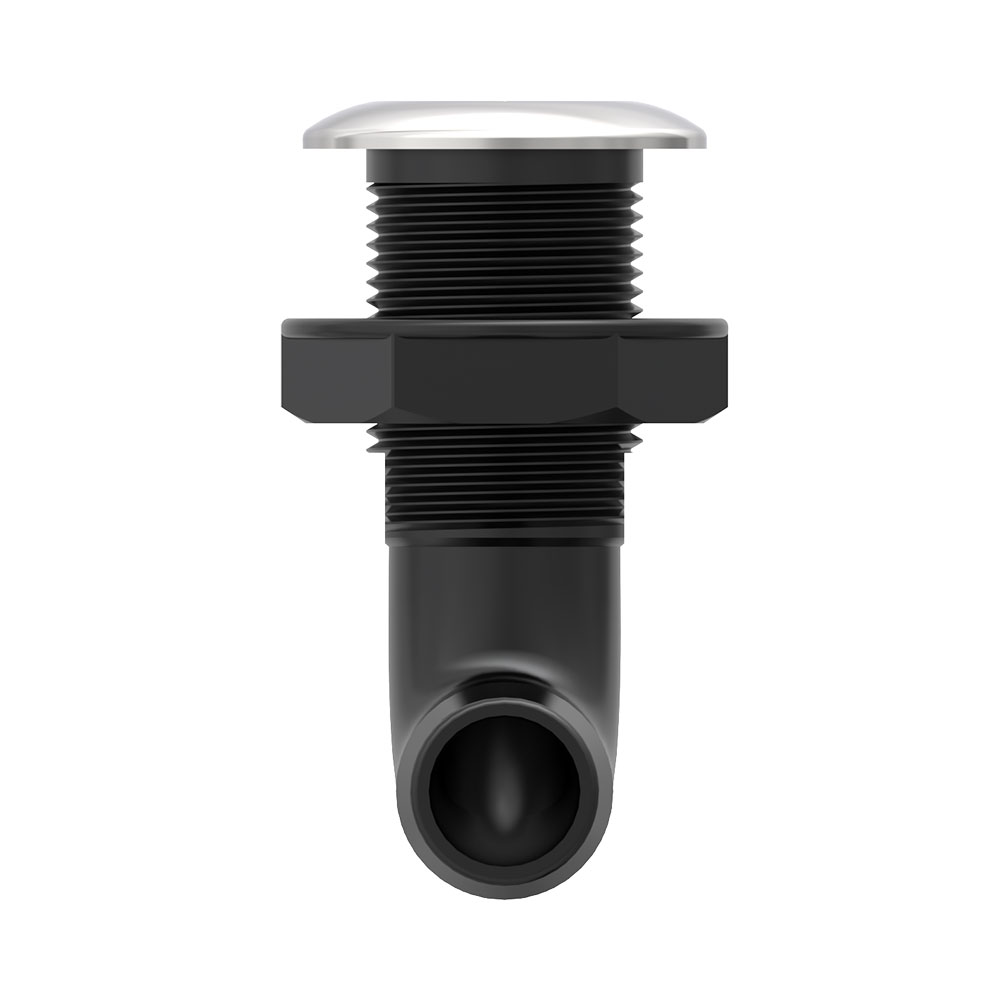

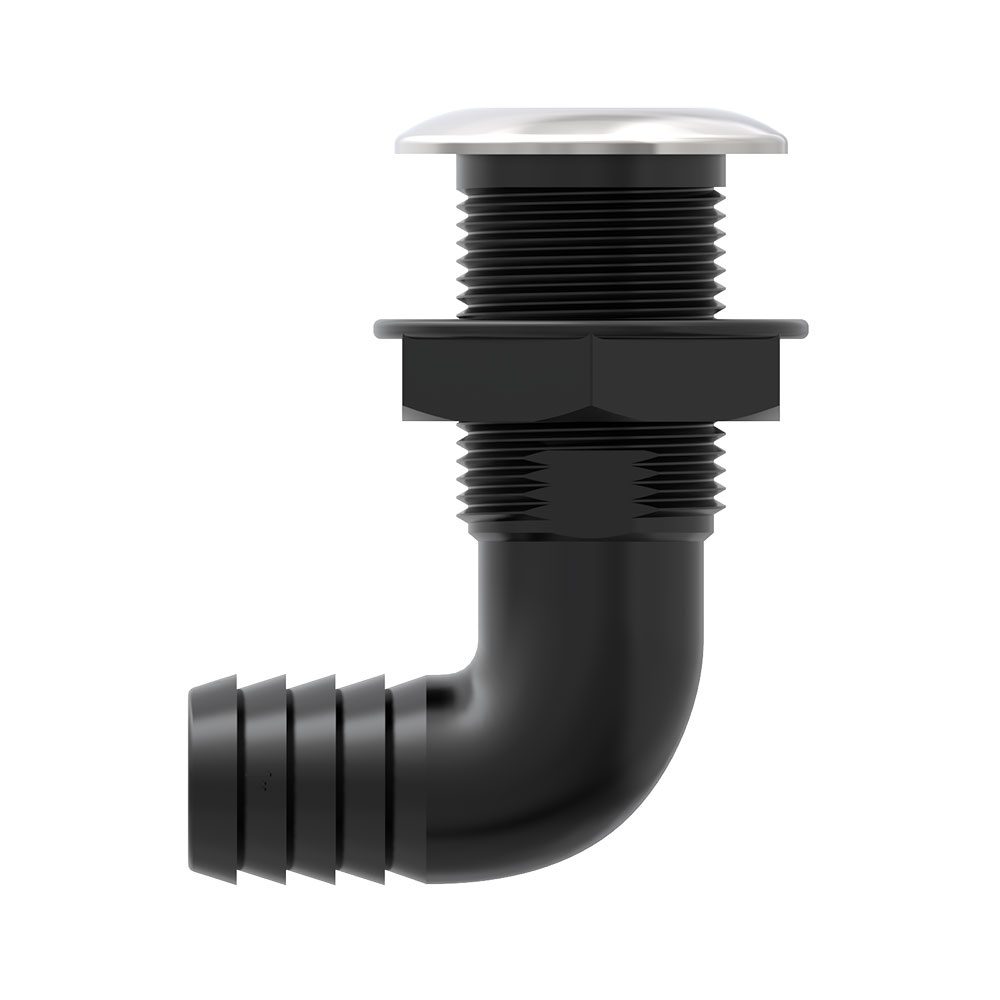

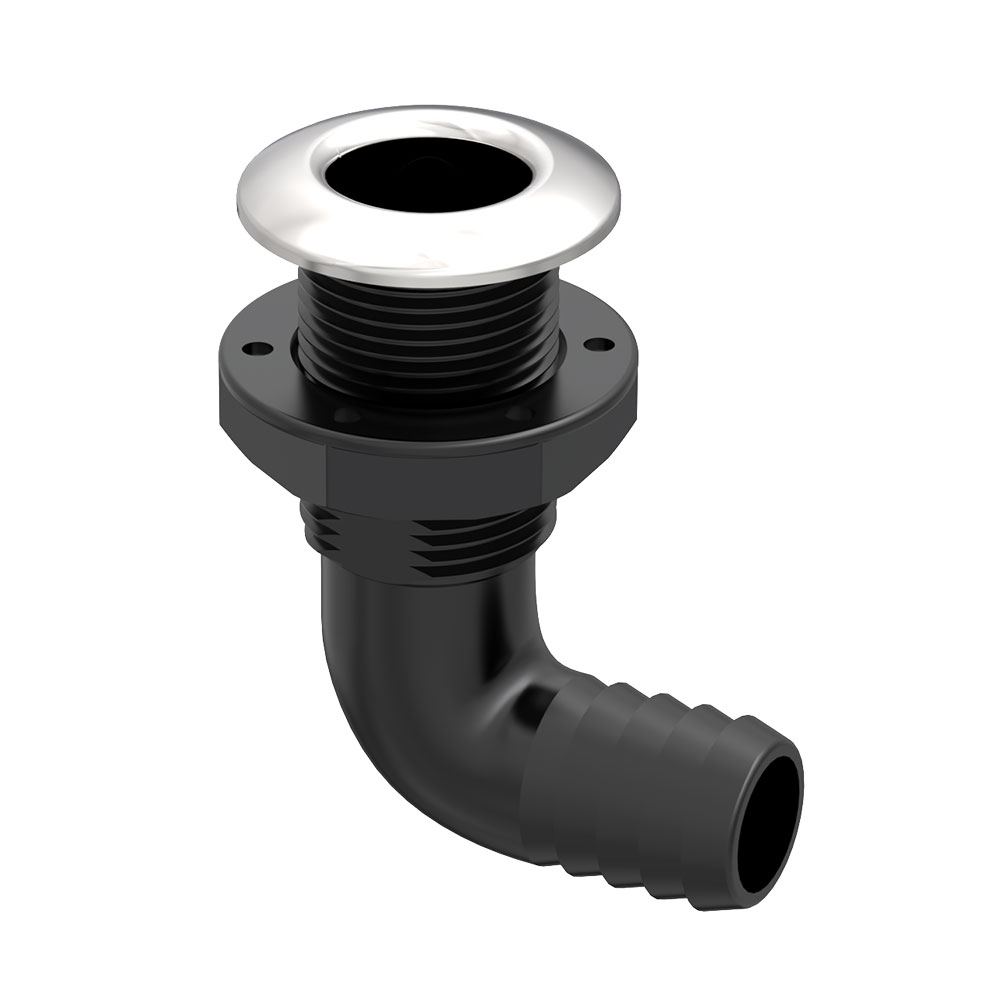

Made from premium materials, ensuring proven strength, durability and performance, it's durable and highly reliable. This 90-degree pass-through hull fitting has a simple and sturdy construction for quick and easy installation. It is designed for applications where hoses are difficult to route and is suitable for some corners and tight areas. Widely used in ships, yachts, boats to meet your daily needs.
MORE FEATURES & BENEFITS
• Stainless steel cover
• High strength material
• Ultra-durable
• Anti-corrosion
STANDARD CONFIGURATIONS
| Model | Size inch | A (mm） | B（mm） | C（mm） | D ('') | E (mm) | F (mm) | d1（mm） | Color |
SFTH3-0625-02 | 5/8” | 16 | 48 | 73 | 1” | 52 | 64 | 24.5 | White |
SFTH3-0750-02 | 3/4” | 19.4 | 48 | 73 | 1” | 52 | 64 | 24.5 | Black |
SFTH3-1000-02 | 1” | 25.8 | 48 | 76 | 1” | 52 | 64 | 24.5 | White |
SFTH3-1125-02 | 1”1/8 | 29 | 48 | 76 | 1” | 52 | 91 | 24.5 | Black |
SFTH3-1250-02 | 1”1/4 | 32.2 | 60 | 76 | 1”1/4 | 55 | 95 | 32 | White |
SFTH3-1500-02 | 1”1/2 | 38.5 | 60 | 88 | 1”1/4 | 55 | 96 | 32 | Black |
