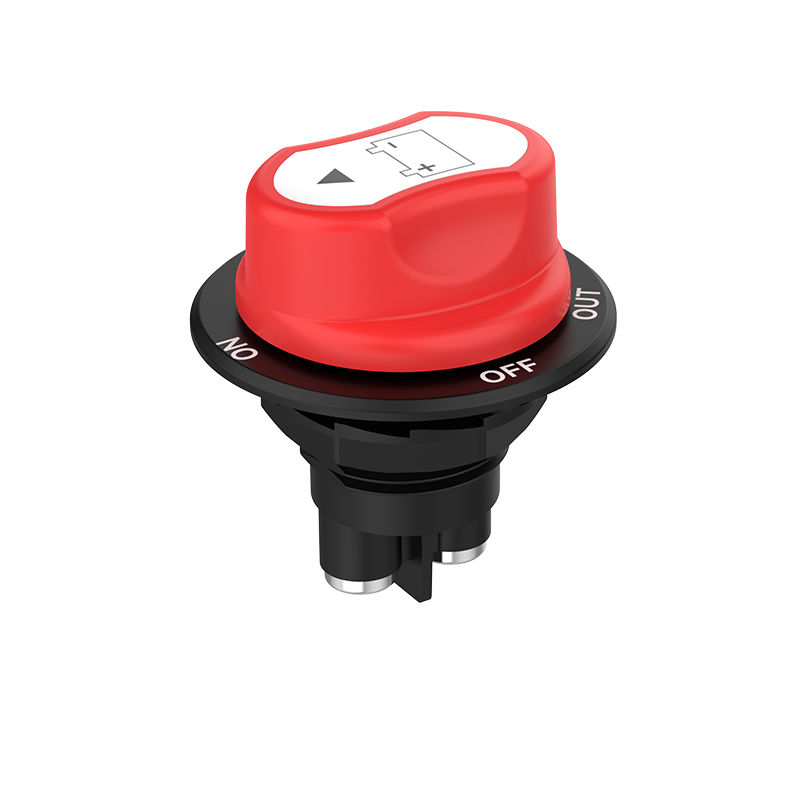

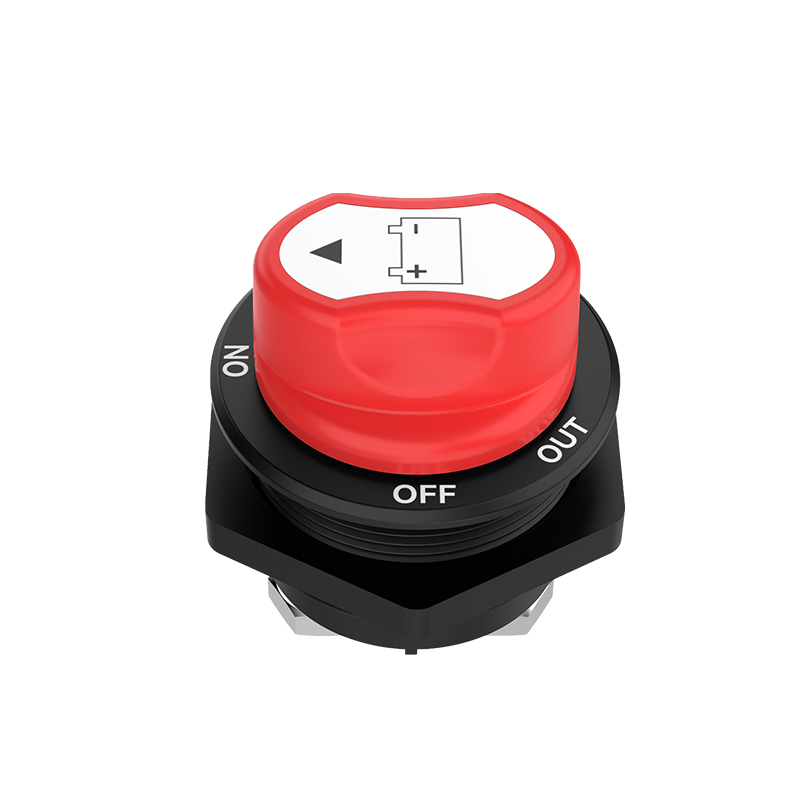

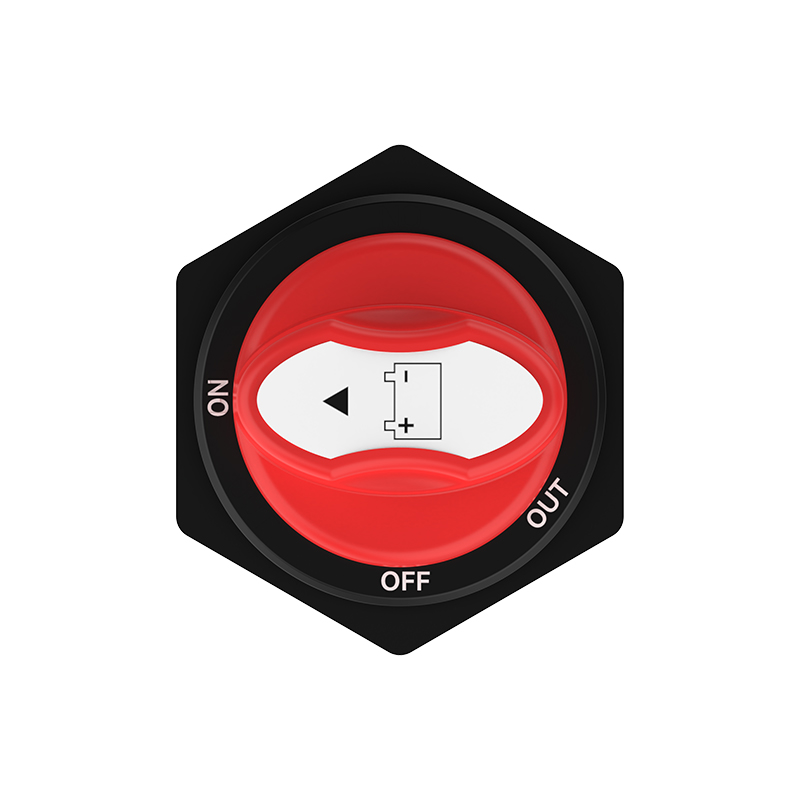

Marine disconnect battery switch, marine switch
Model：SFCBS-50-204、SFCBS-100-204、SFCBS-200-204
Maximum Voltage：32V
Material：Plastic + Brass
A two-way battery switch is used to connect cables to the top posts of battery terminals. The battery disconnect switch allows you to easily cut off the power at any time and protect your electrical system when needed.
MORE BENEFITS & FEATURES

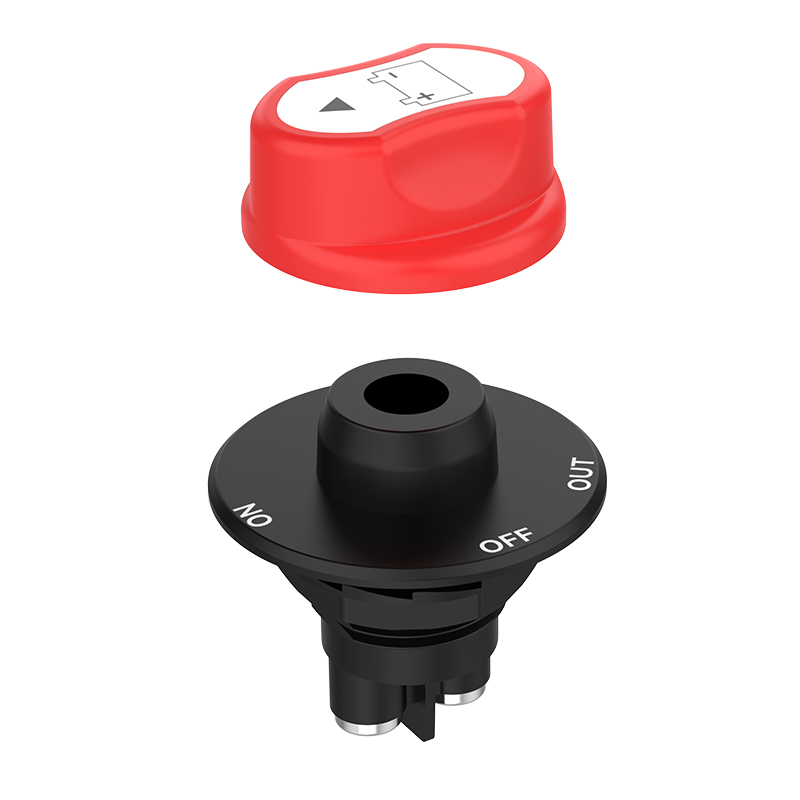

Removable cap that doubles as a key
Leakage-proof design extends battery life
Simple operation:
- On: on state
- Off: off state
- Out: removable cap
Waterproof and rainproof switch
Compact size for easy installation
Compatible with 12-48V DC systems,applications including outboard motors, yachts, cars, and Rvs
STANDARD CONFIGURATIONS
| Model | Continuous Current | Maximum Voltage | Intermittent Current | Product Life | Operating Temperature | Material |
| SFCBS-50-204 | 50A | 32V | 75A | 1000 times | -30℃~+60℃ | Plastic + Brass |
| SFCBS-100-204 | 100A | 32V | 100A | 1000 times | -30℃~+60℃ | Plastic + Brass |
| SFCBS-200-204 | 200A | 32V | 300A | 1000 times | -30℃~+60℃ | Plastic + Brass |
| SFCBS-300-204 | 300A | 32V | 450A | 1000 times | -30℃~+60℃ | Plastic + Brass |
