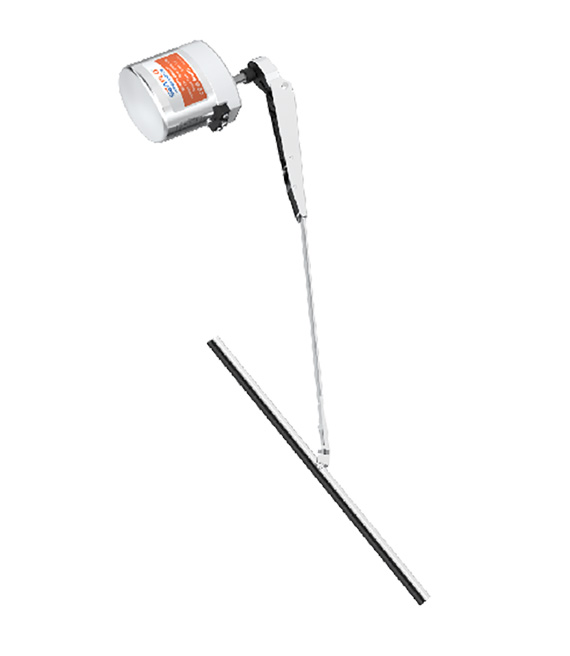

Wiper motor, rubber wiper blade, wiper blade
Model：SFWK1-0564-01
Max Current：1.2A
Voltage：12 V
Sweep Speed：40 sweeps/min
Providing efficient wiping solutions for every vessel. Reliable and durable wiper solutions for all marine environments.
FEATURES & BENEFITS

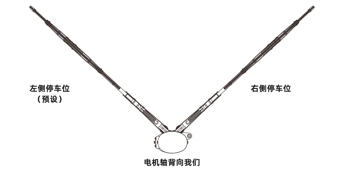

Factory preset to left parking position with a sweep angle of 90°
MORE FEATURES & BENEFITS
Wiper Motor Features:
· 5 Nm torque
· Adjustable sweep angles: 90°, 110°
· Adjustable self-parking to the right or left position
· Stainless steel driveshaft and durable metal housing
· Shaft Length: 64 mm / 2.5″
Wiper Arm Features:
· Adjustable length
· 316 stainless steel construction
· Reinforced durability
Wiper Blade Features:
· Rust-resistant stainless steel frame.
· Natural rubber blade for smooth wiping
· Easy installation
STANDARD CONFIGURATIONS
| Model | Max Current | Voltage | Sweep Angles | Sweep Speed | Wiper Arm Length | Wiper Blade Length | Fuse | Moter Model | Wiper Arm Model | Wiper Blade Model |
| SFWK1-0564-01 | 1.2A | 12V | 90°,110° | 40sweep/min | 9½"-12⅜"(235-315mm) | 11"(280mm) | 3A | SFWM1-0564-01 | SFWA1-315-05 | SFWB1-280-03 |
| SFWK2-0564-01 | 0.6A | 24V | 90°,110° | 40sweep/min | 9½"-12⅜"(235-315mm) | 11"(280mm) | 2A | SFWM1-0564-01 | SFWA1-315-05 | SFWB1-280-03 |
| SFWK1-0564-02 | 1.2A | 12V | 90°,110° | 40sweep/min | 12“-15"(305-380mm) | 14"(355mm) | 3A | SFWM1-0564-01 | SFWA1-380-05 | SFWB1-355-03 |
| SFWK2-0564-02 | 0.6A | 24V | 90°,110° | 40sweep/min | 12“-15"(305-380mm) | 14"(355mm) | 2A | SFWM1-0564-01 | SFWA1-380-05 | SFWB1-355-03 |
