Snail blower, flange fixed fan, eddy current fan, curved fixed fan
Model：SFBB1-250-04
Voltage：12V
Air Flow：250/425
Provides ventilation for engine compartments, galleys, bilges and heads. Designed for efficient, high output operation, these blowers feature our exclusive front and rear shaft seals and corrosion resistant motor housings, white MPPO plastic construction for long life and use in the marine environment.
MORE FEATURES & BENEFITS
• Rugged corrosion resistant MPPO plastic housing
• Universal flex mount bracket permits outlet to face any direction
• Mounts on any flat surface
• Slide-in duct connection
• High-efficiency,high-volume airflow
• Low-current draw,ignition protection

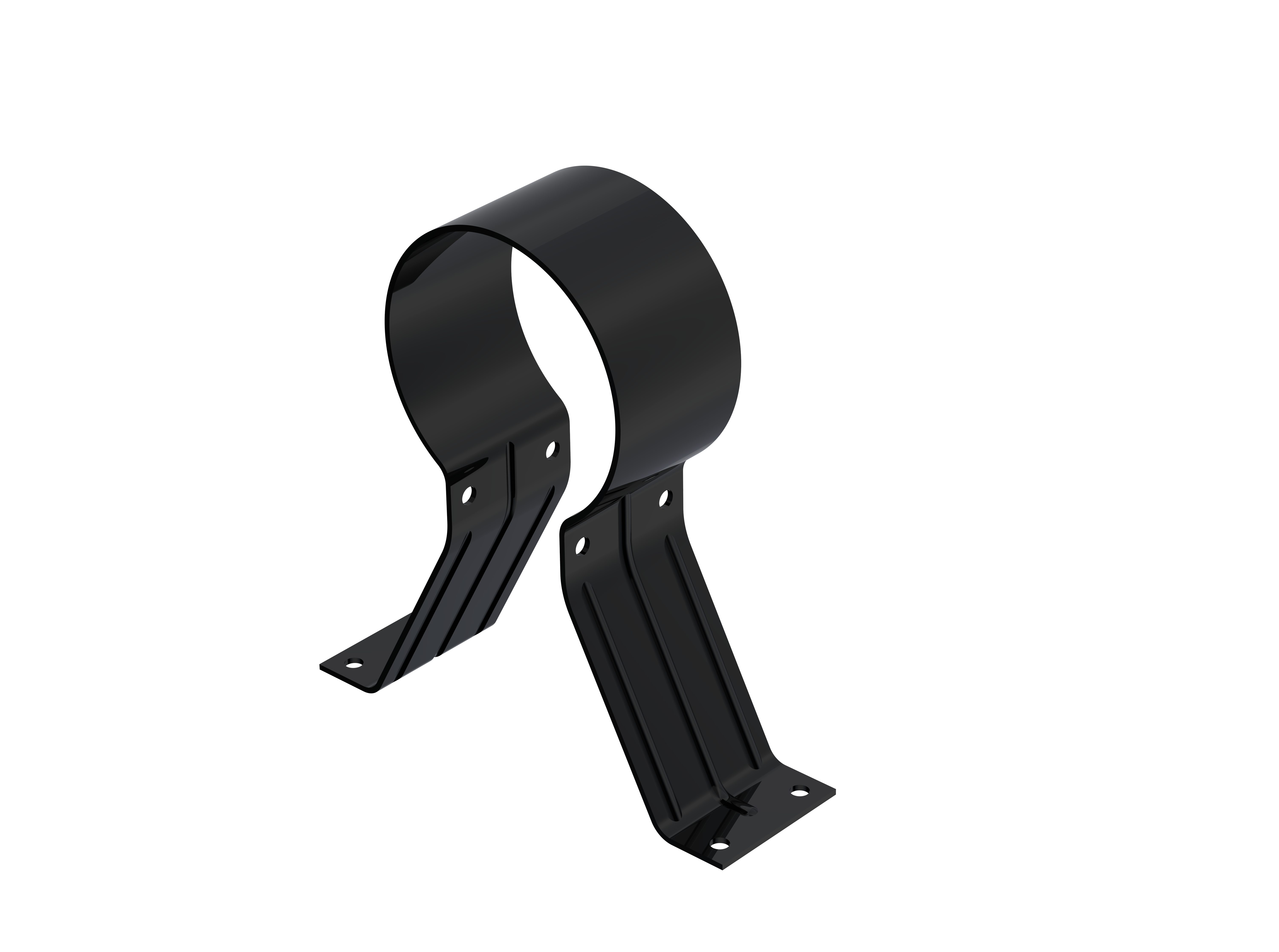

• Mounting brackets are made of cold rolled galvanized sheet (SPCD) metal
• CE Conforms with EN50014-1,ENN61000-3-3 standards
STANDARD CONFIGURATIONS
| Model | Voltage | Air Flow | Current(A) | Fuse |
| SFBB1-250-04 | 12V | 250/425 | 12.0A | 15.0A |
| SFBB2-250-04 | 24V | 250/425 | 6.0A | 10.0A |
