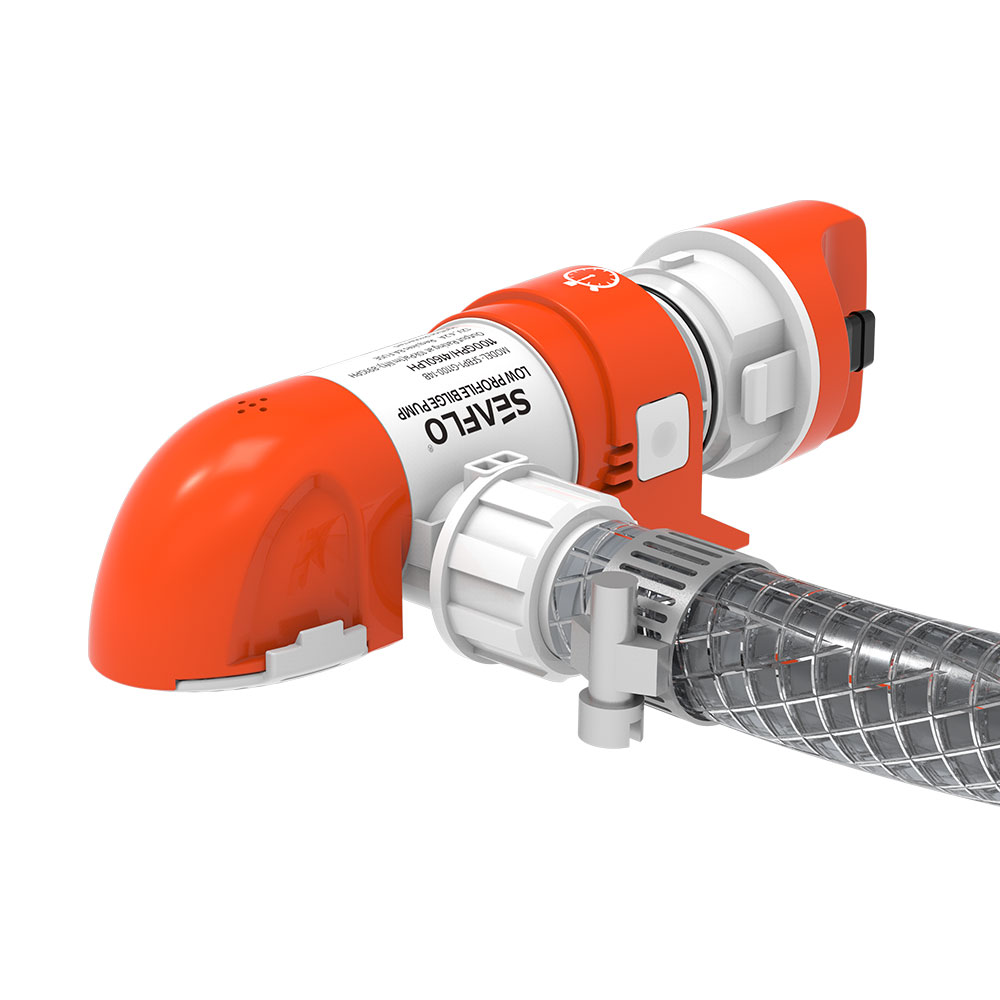

14B Series Narrow Low Profile Time Sensing Automatic Bilge Pumps

Automatic Bilge Pumps,Submersible Pump,marine pump

Voltage:12V / 24V

Flow Rate:800/1100 GPH

Outlet Dia:3/4" (19mm) 1" (25mm) 1-1/8" (29mm)

Application Scenarios:Marine

Motor:Cartridge Pump Replacement Motors(sold separately)

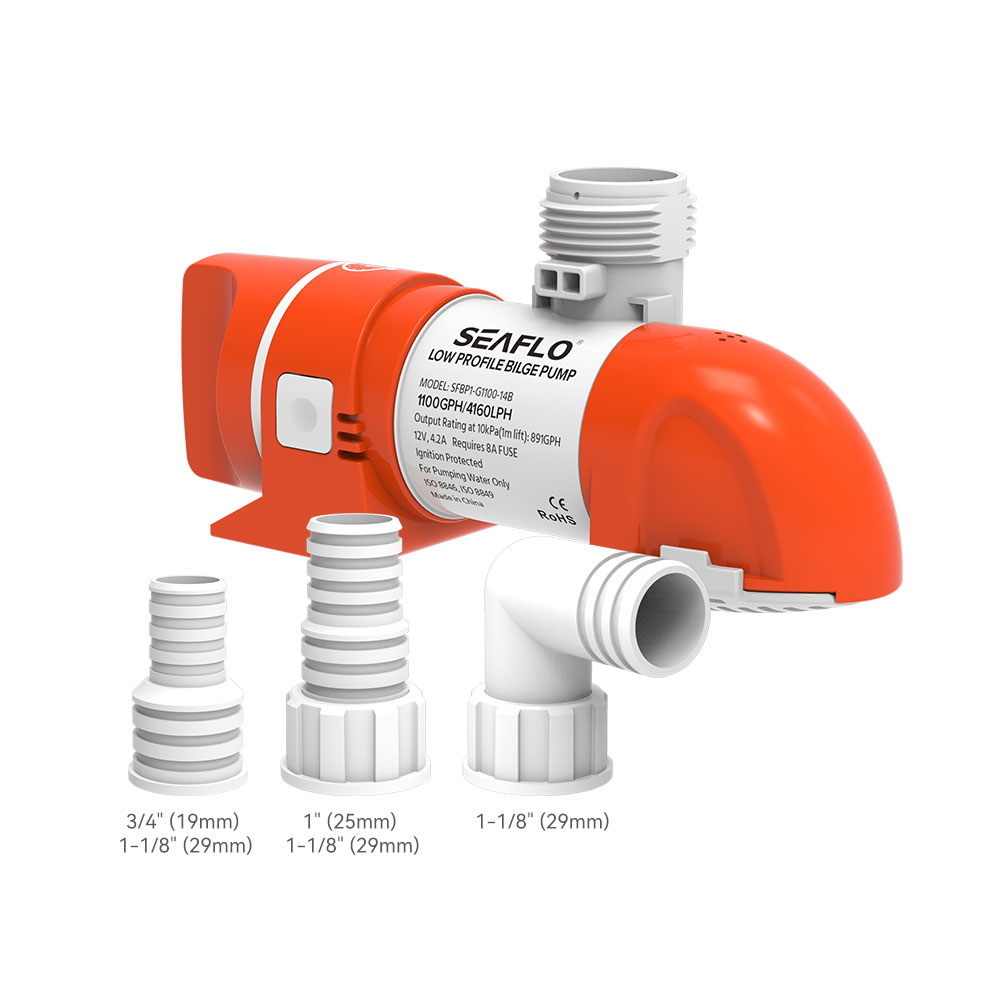

Our best drain down levels ever as low as 10mm or 1/3”. It checks for water every 2.5 minutes and runs for a half second with smart running. SEAFLO Narrow, Low profile bilge pump fits deep down in small/awkward bilge spaces where other pumps won't fit. Compact, Horizontal or vertical mounting, with 360 Degree Discharge for easy remove and replace and leaves the bilge almost dry. Port Type 3/4" (19mm), 1" (25mm), 1 1/8" (29mm) Straight Hose barb or 3/4"(19mm) 90° Elbow together with pumps to meet different installation request.

Email consultation
collect
SHARE THIS PRODUCT:

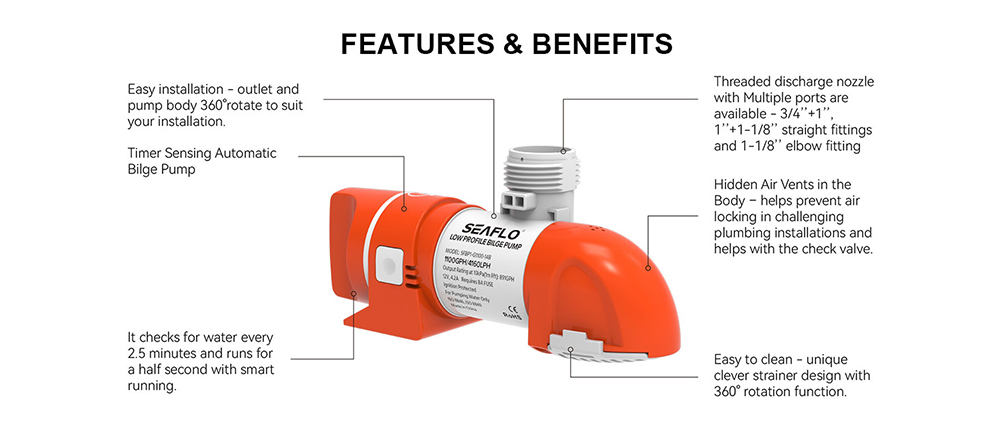

MORE FEATURES & BENEFITS

•  Low narrow design for tight/awkward bilge spaces

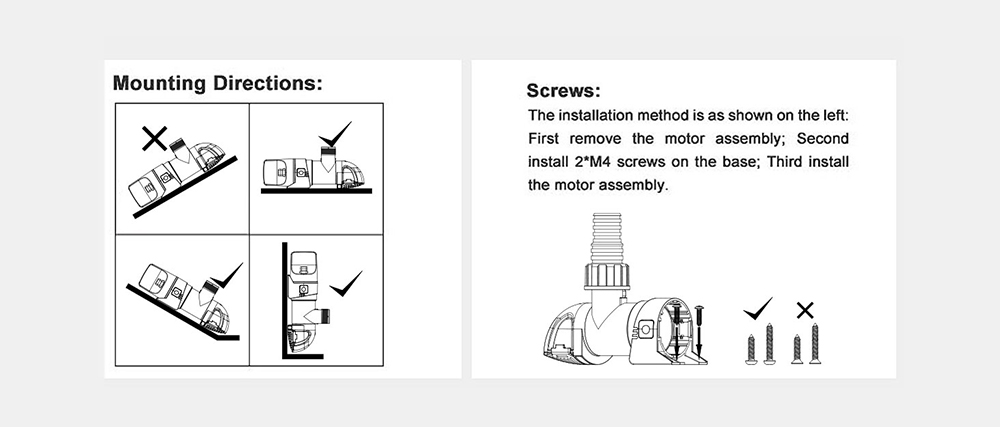

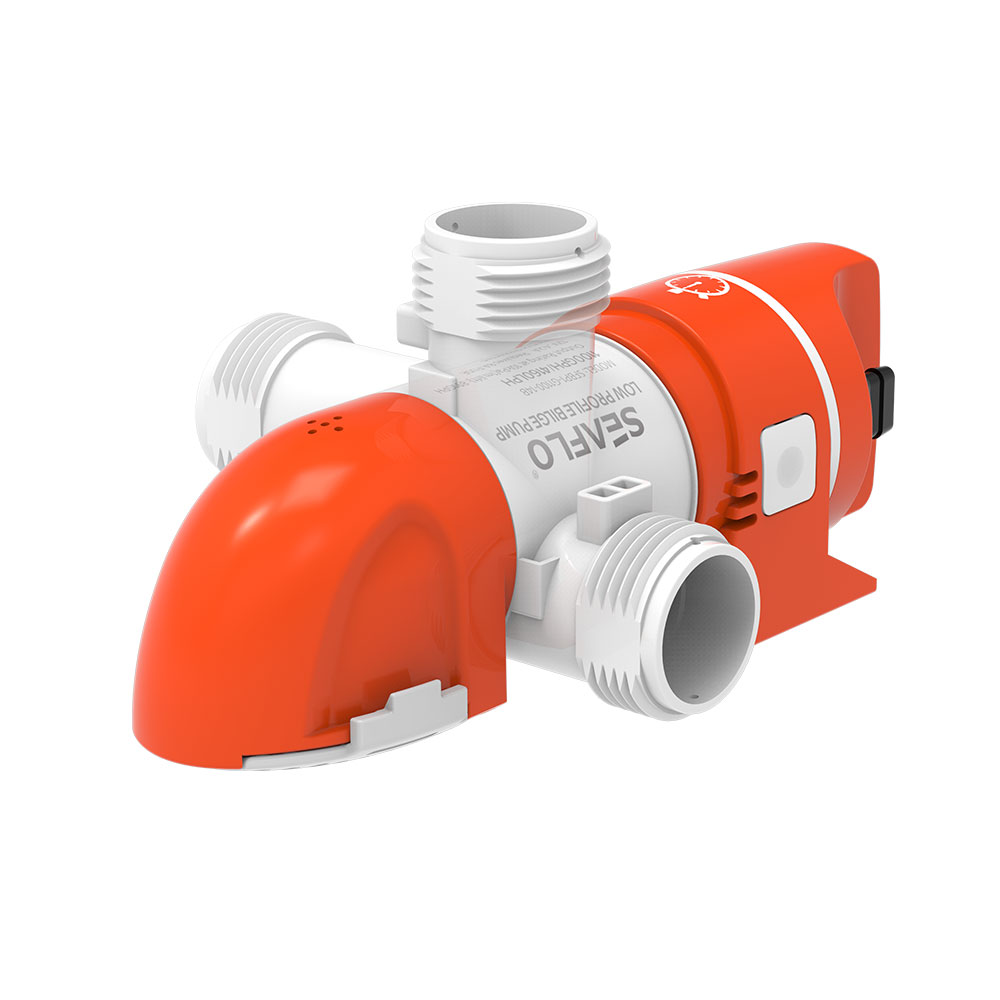

•  Easy installation - outlet and pump body 360º rotate to suit your installation

•  Unaffected by wave motion - optimized on/off timings prevent run on

•  Efficient operation - Very low power consumption

•  Low profile strainer - Leaves the bilge almost dry

•  Easy to clean- snap fit assembly easy to remove and replace for cleaning

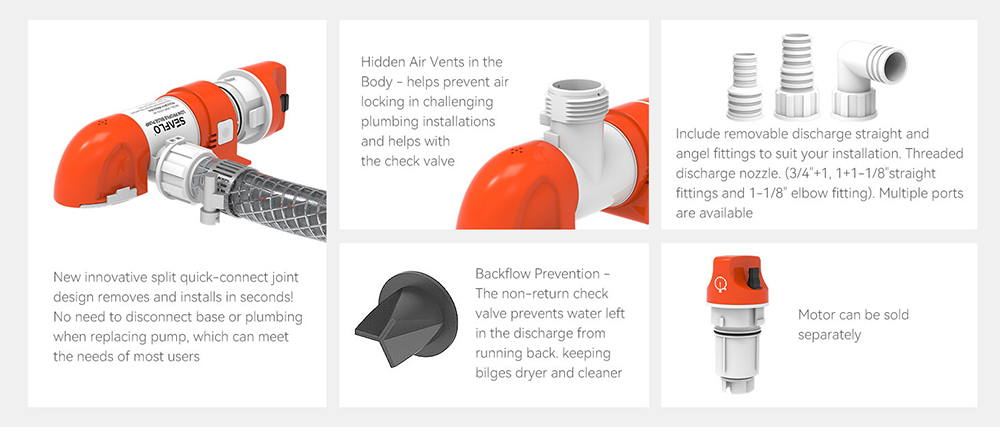

•  Includes check valve to prevent water backflow

•  CE, RoHS, ISO 8846, ISO8849 standards

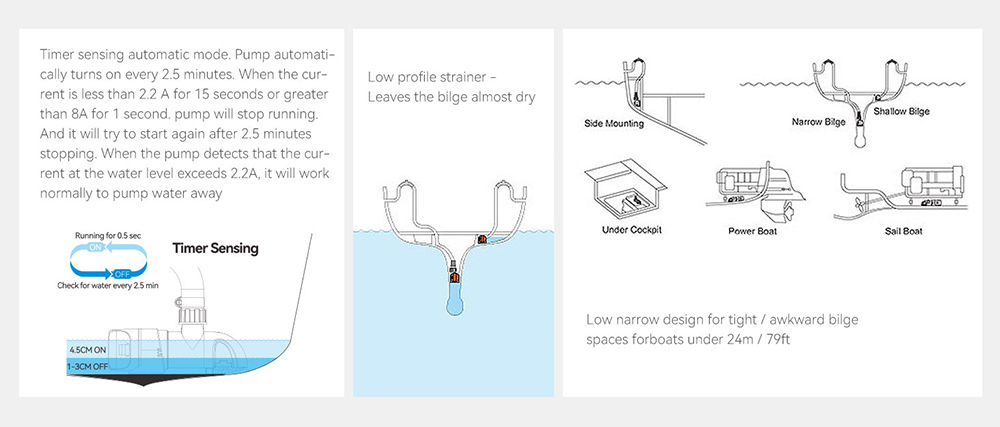

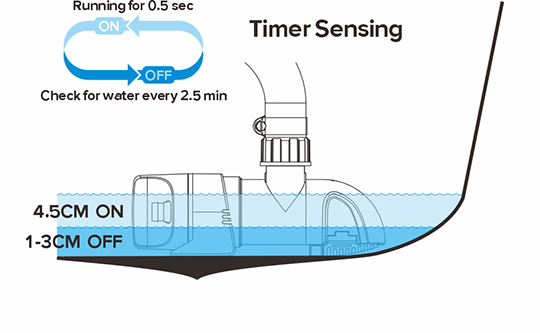

•  Check for water every 2.5 minutes and runs for a half second

•  Sealed efficient, long life motors, quiet operation

•  Exclusive moisture tight seals

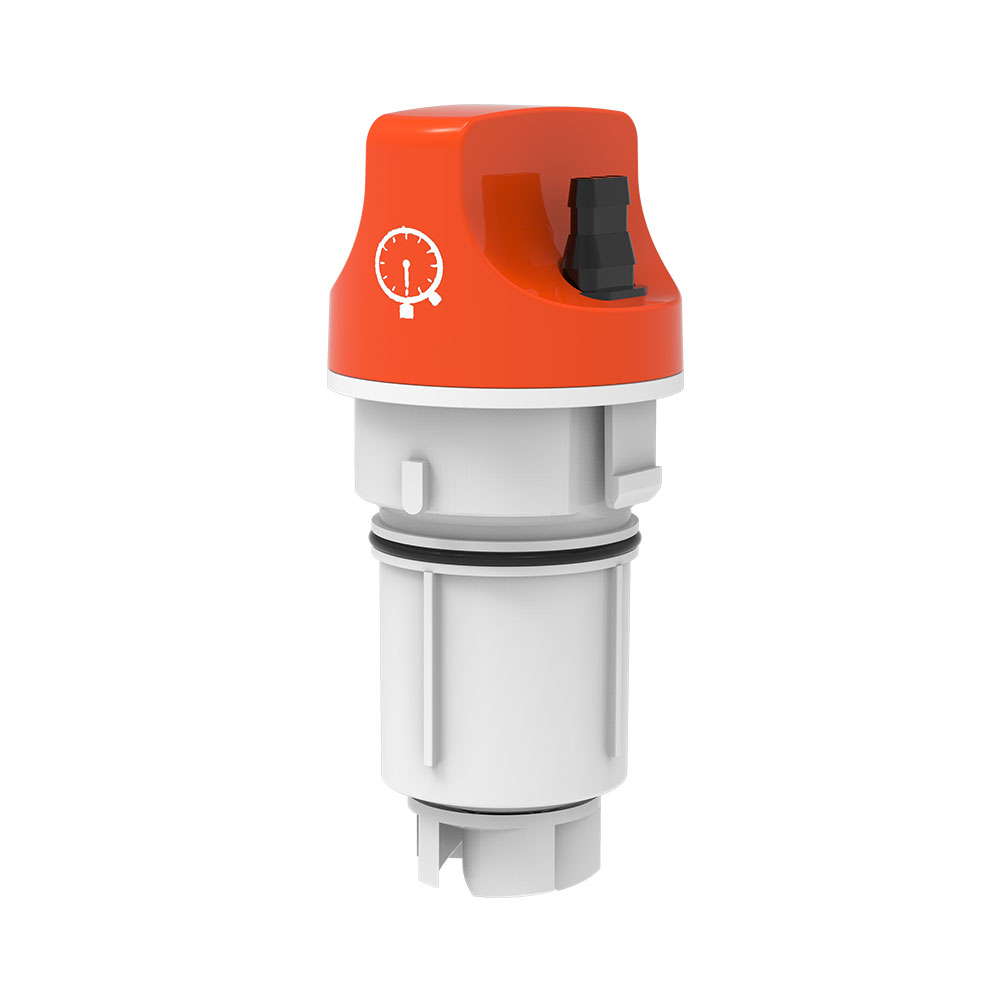

•  Motor can be sold separately

•  Stainless-steel motor shaft

•  Marine grade silicon blocked, tin coated wiring

•  Anti-Airlock protection

•  Compact automatic pump-no float switch needed

•  Five-blade impeller to ensure high flow rate

•  2 Year Warranty

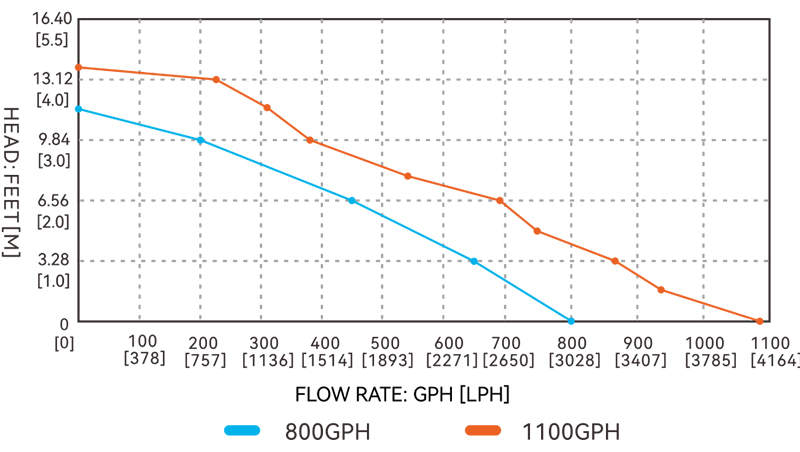

STANDARD PUMP CONFIGURATIONS

Model

Flow rate

Volts

Current

Head

Mode of   Operation

SFBP1-G800-14B

800GPH

12V

3.2A

3.2m/10.5'

automatic timer sensor

SFBP2-G800-14B

800GPH

24V

2.0A

3.2m/10.5'

SFBP1-G1100-14B

1100GPH

12V

4.2A

4.0m/13'

SFBP2-G1100-14B

1100GPH

24V

3.0A

4.0m/13'







SHIPPING INFORMATION

Unit Weight

0.84 lbs (0.38 kg)

Selling Unit Size (L x W x H)

7.87" x 5.31" x 2.56"

(20 x 13.5 x 6.5 cm)

Selling Unit Weight

1.21 lbs (0.55 kg)

Master Carton Size (L x W x H)

22.05" x 16.14" x 11.22"

(56 x 41 x 28.5 cm)

Master Carton Qty

32 pcs

Master Carton Weight

38.58 lbs (17.5 kg)

41.45 lbs (18.8 kg)

Master Carton Volume

0.065 m³
