Micro silent water pump,24v water pump, rv pump
Voltage：12V/24V
Open Flow：3.0-5.0GPM / 11.5-18.9LPM
Shut-off Pressure：60-70PSI / 4.2-4.8BAR
Priming Capabilities：6 feet (1.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：Quick Attach

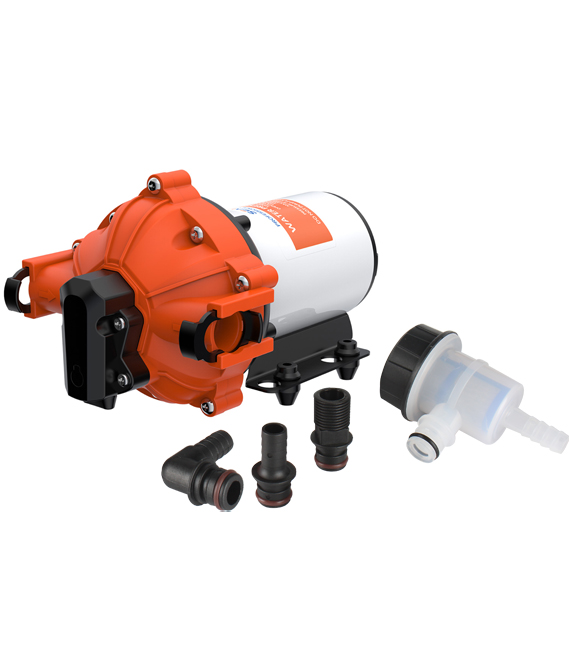

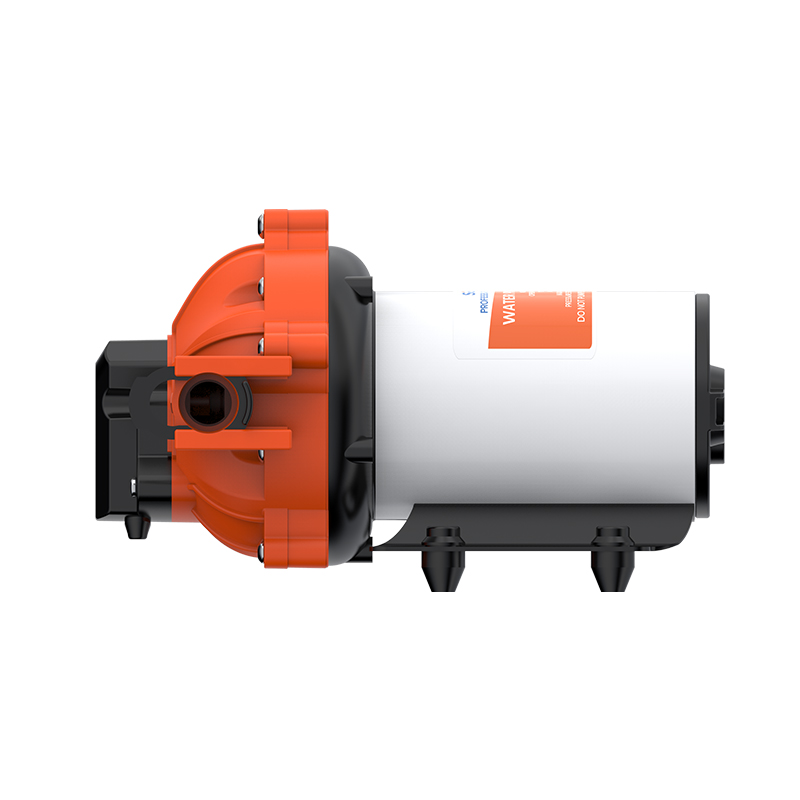

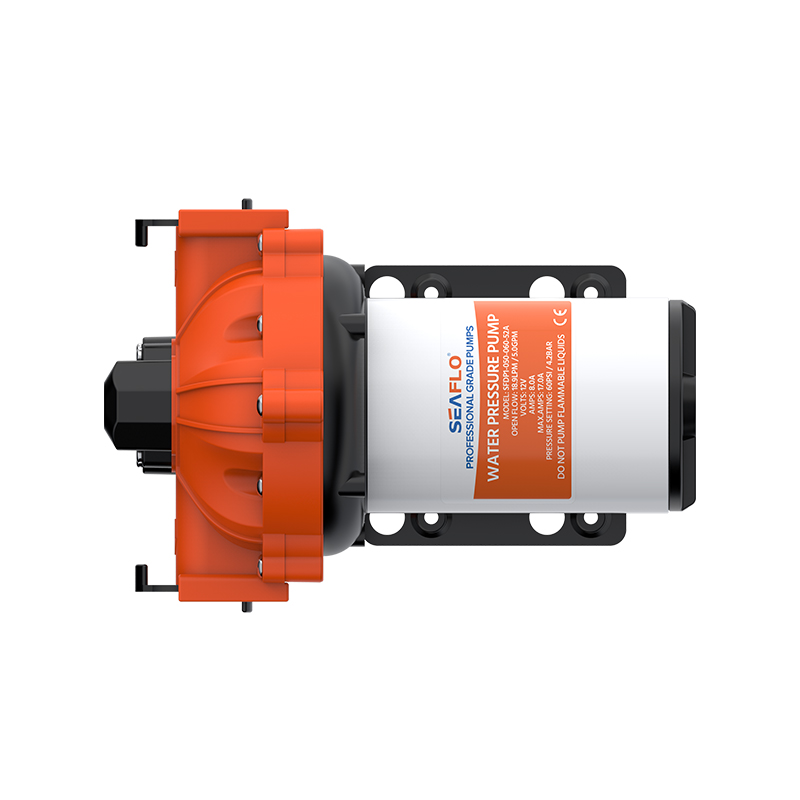

The 52-Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. Quick Attach Fittings make installation or replacement easy. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 52-Series pumps are self-priming, and can run dry without damage, performance reliable. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops and stops the pump when the faucet is opened and closed. They are easy to install service and winterize.

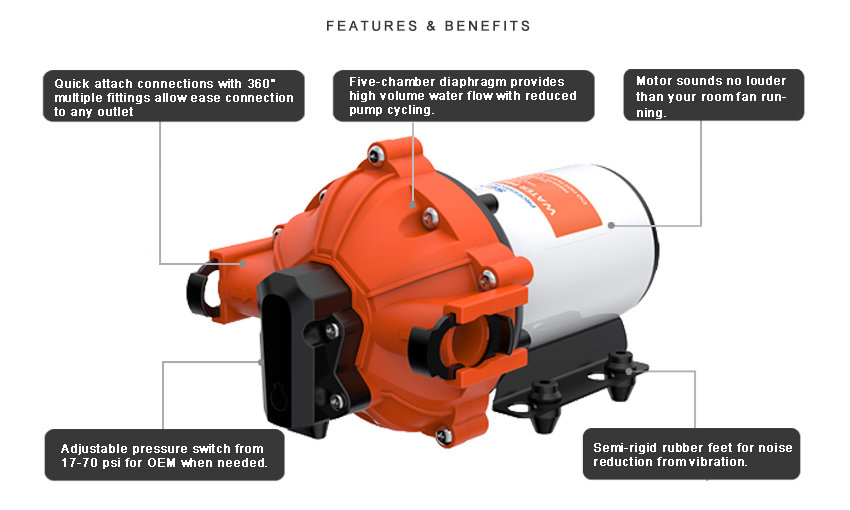

MORE FEATURES & BENEFITS
• Up to 5.0 GPM
• Continuous Duty
• Can supply up to 4 fixtures
• Quick connect fittings
• Very quiet operation
• Self priming
• Run dry safe
• On-demand use
• Industry Standard mounting pattern
• Can be used for Fresh & Salt Water
• Heavy-Duty Motor
• 16 AWG, 9"(22.8 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-040-060-52A | 12V | 4.0 / 15.0 | 13.0A | 60 / 4.2 |
| SFDP2-040-060-52A | 24V | 4.0 / 15.0 | 7.0A | 60 / 4.2 |
| SFDP1-050-060-52A | 12V | 5.0 / 18.9 | 17.0A | 60 / 4.2 |
| SFDP2-050-060-52A | 24V | 5.0 / 18.9 | 9.0A | 60 / 4.2 |
| SFDP1-050-070-52A | 12V | 5.0 / 18.9 | 18.0A | 70/ 4.8 |
| SFDP2-050-070-52A | 24V | 5.0 / 18.9 | 10.0A | 70/ 4.8 |

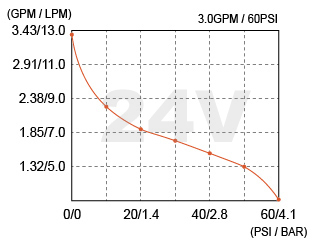

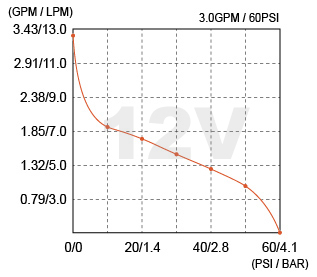

3.0GPM / 60PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 3.33 | 12.60 | 3.78 | 3.43 | 13.00 | 2.02 |
| 10 | 0.69 | 1.96 | 7.40 | 4.53 | 2.27 | 8.60 | 2.74 |
| 20 | 1.38 | 1.74 | 6.60 | 5.79 | 1.90 | 7.20 | 3.14 |
| 30 | 2.07 | 1.48 | 5.60 | 6.84 | 1.74 | 6.60 | 3.57 |
| 40 | 2.76 | 1.27 | 4.80 | 7.41 | 1.53 | 5.80 | 4.03 |
| 50 | 3.45 | 1.00 | 3.80 | 8.20 | 1.32 | 5.00 | 4.40 |
| 60 | 4.14 | 0 | 0 | 9.12 | 0 | 0 | 4.79 |

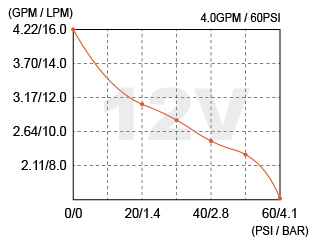

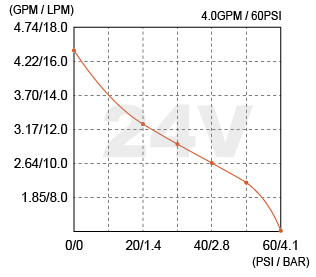

4.0GPM / 60PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 4.22 | 16.00 | 5.24 | 4.39 | 16.60 | 2.22 |
| 10 | 0.69 | / | / | / | / | / | / |
| 20 | 1.38 | 3.06 | 11.60 | 8.06 | 3.28 | 12.40 | 4.13 |
| 30 | 2.07 | 2.80 | 10.60 | 9.05 | 2.96 | 11.20 | 4.51 |
| 40 | 2.76 | 2.54 | 9.60 | 10.00 | 2.64 | 10.00 | 5.09 |
| 50 | 3.45 | 2.27 | 8.60 | 10.79 | 2.32 | 8.80 | 5.61 |
| 60 | 4.14 | 0 | 0 | 11.40 | 0 | 0 | 6.24 |

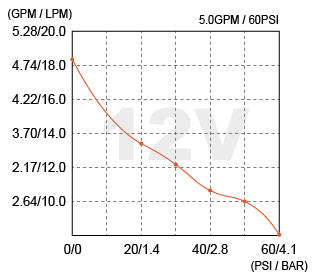

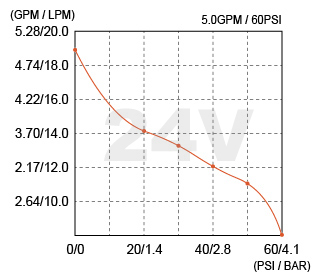

5.0GPM / 60PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 4.86 | 18.40 | 5.12 | 5.18 | 19.60 | 3.20 |
| 10 | 0.69 | / | / | / | / | / | / |
| 20 | 1.38 | 3.54 | 13.40 | 9.14 | 3.75 | 14.20 | 4.67 |
| 30 | 2.07 | 3.22 | 12.20 | 10.39 | 3.49 | 13.20 | 5.34 |
| 40 | 2.76 | 2.85 | 10.80 | 11.57 | 3.17 | 12.00 | 6.01 |
| 50 | 3.45 | 2.64 | 10.00 | 12.66 | 2.91 | 11.00 | 6.58 |
| 60 | 4.14 | 0 | 0 | 13.72 | 0 | 0 | 7.18 |

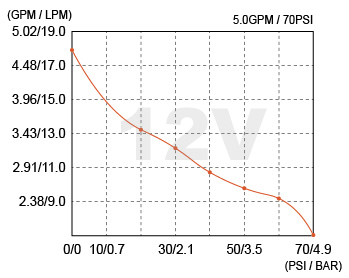

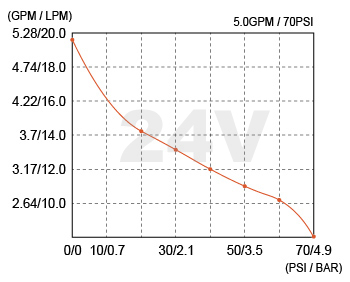

5.0GPM / 70PSI
PRESSURE | 12V | 24V | |||||
FLOW | CURRENT | FLOW | CURRENT | ||||
PSI | BAR | GPM | LPM | AMPS | GPM | LPM | AMPS |
| 0 | 0 | 4.86 | 18.40 | 5.12 | 5.18 | 19.6 | 3.2 |
| 20 | 0.69 | 3.54 | 13.40 | 9.14 | 3.75 | 14.2 | 4.67 |
| 30 | 1.38 | 3.22 | 12.20 | 10.39 | 3.49 | 13.2 | 5.34 |
| 40 | 2.07 | 2.85 | 10.80 | 11.57 | 3.17 | 12 | 6.01 |
| 50 | 2.76 | 2.64 | 10.00 | 12.66 | 2.91 | 11 | 6.58 |
| 60 | 3.45 | 2.43 | 9.20 | 13.72 | 2.69 | 10.2 | 7.18 |
| 70 | 4.14 | 0 | 0 | 14.47 | 0 | 0 | 7.65 |

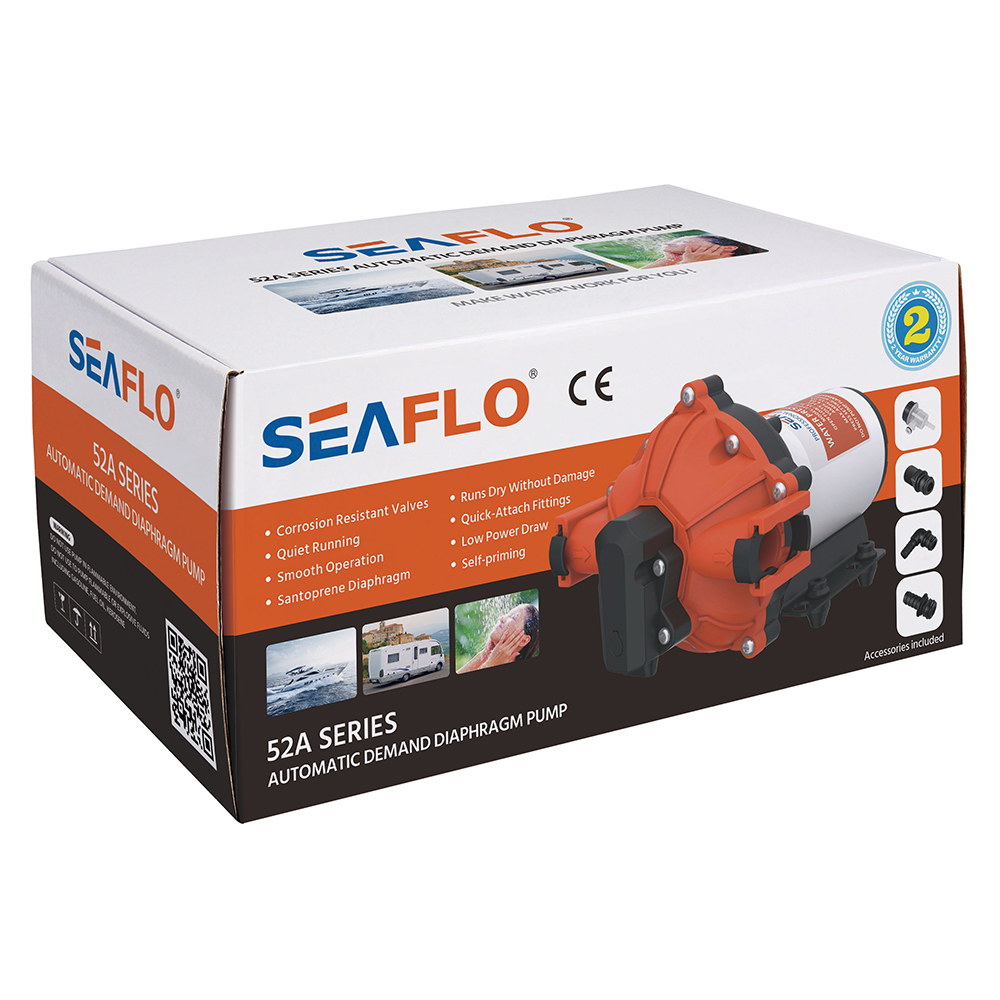

SHIPPING INFORMATION
Unit Weight | 5.86 lbs (2.66 kg) |
Selling Unit Size (L x W x H) | 11.1" x 6.18" x 5.35" (28.2 x 15.7 x 13.6 cm) |
Selling Unit Weight | 6.42 lbs (2.91 kg) |
Master Carton Size (L x W x H) | 19.68" x 12.00" x 12.40" (50 x 30.5 x 31.5 cm) |
Master Carton Qty | 6 pcs |
Master Carton Weight | 39.68 lbs (18 kg) |
Master Carton Volume | 0.048 m³ |
