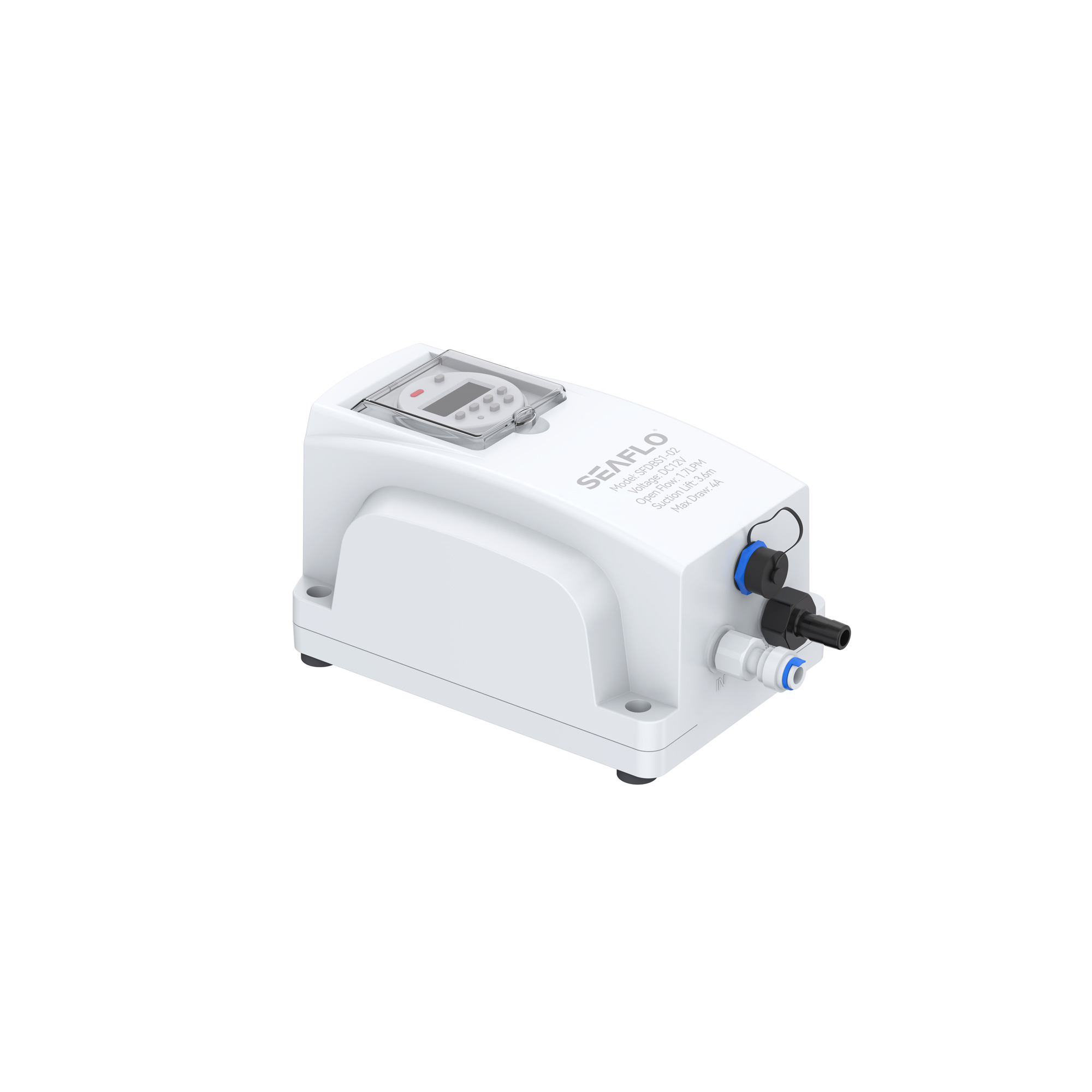

Self-priming pump, bilge pump
Model：SFDBS1-02
Volts：12V
Max Draw：6A
SEAFLO 12-24-32-VDC Boat Bilge Pump Float Switches are the Switch of choice for selective boaters all over the world. Featuring quality design and construction to offer reliable engagement of your bilge pump. For pumps drawing up to 20 amps. SEAFLO float switches are designed for use with fresh water and salt water only.

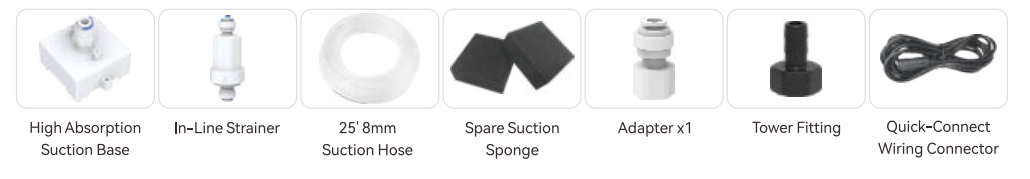

MORE FEATURES & BENEFITS
• 25' Self-priming suction allows the system to be remotely mounted
• Thin (5/16") suction hose allows for easy bends and fits into tight spaces.
• Quick-connect fittings allow for simple plumbing installation.
• High absorption suction base ensures a dry bilge.

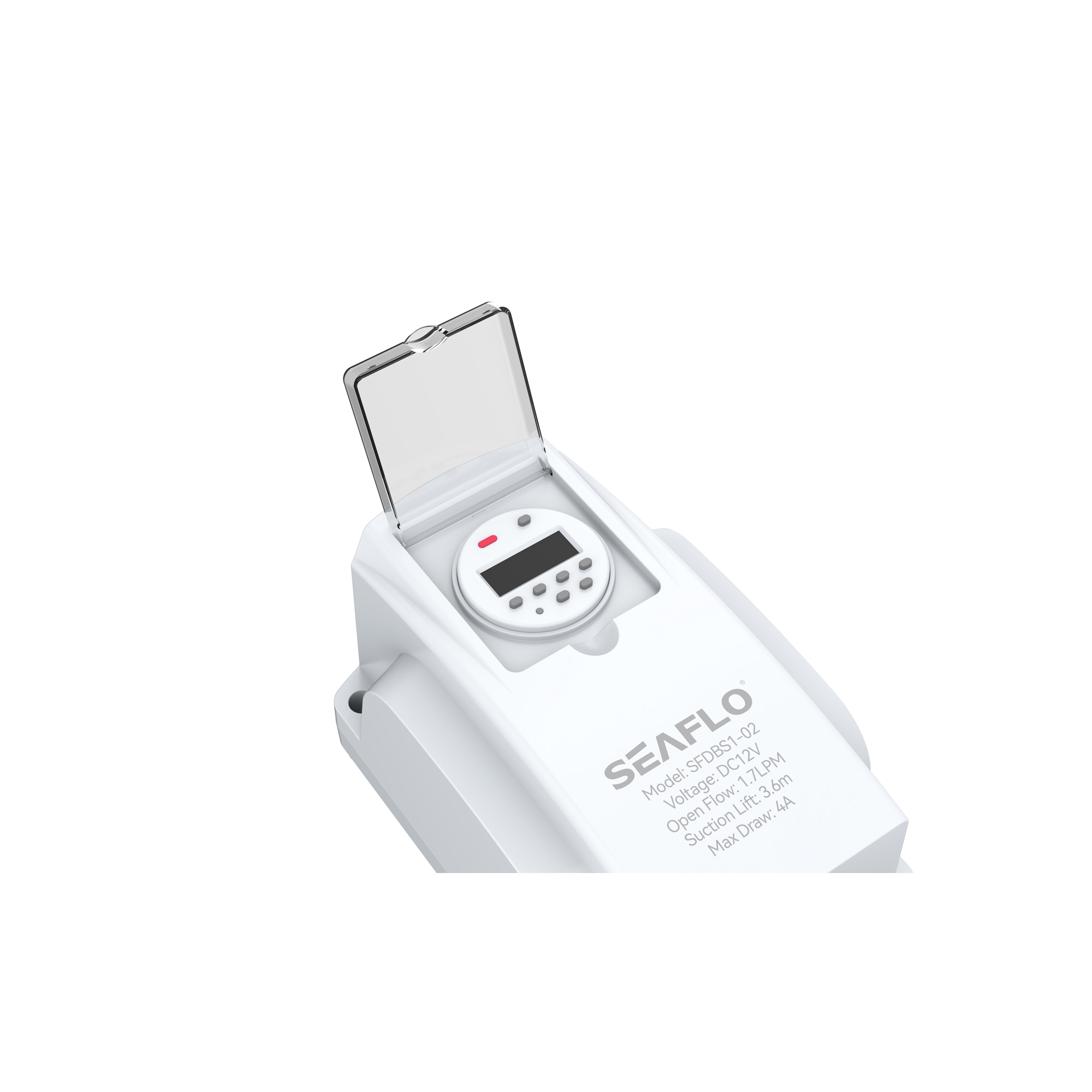

• User program mable timer allows the user to activate the system as much, or as little, as needed.
• lgnition Protected-lS0 8846 Marine/SAE J1171 Marine.
STANDARD CONFIGURATIONS
Model | Volts | Max Draw | Open Flow | Inlet Dia | Outlet Dia |
SFDBS1-02 | 12V | 6A | 1.7 LPM | 5/16" | 5/16" |
SFDBS2-02 | 24V | 3A | 1.7 LPM | 5/16" | 5/16" |
