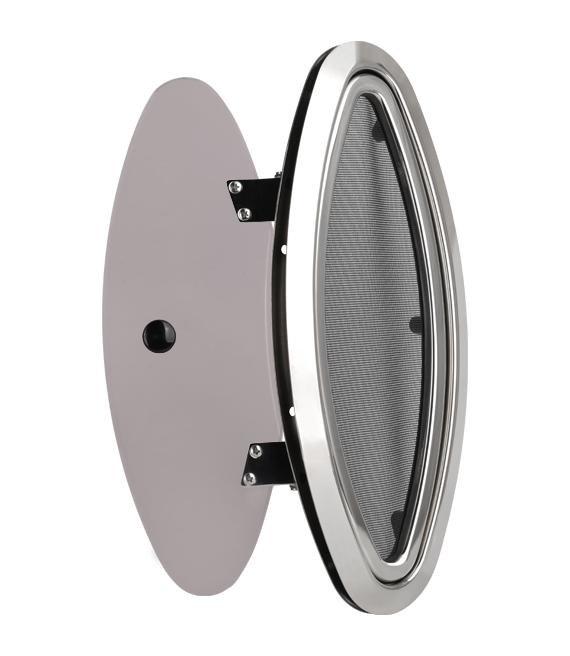

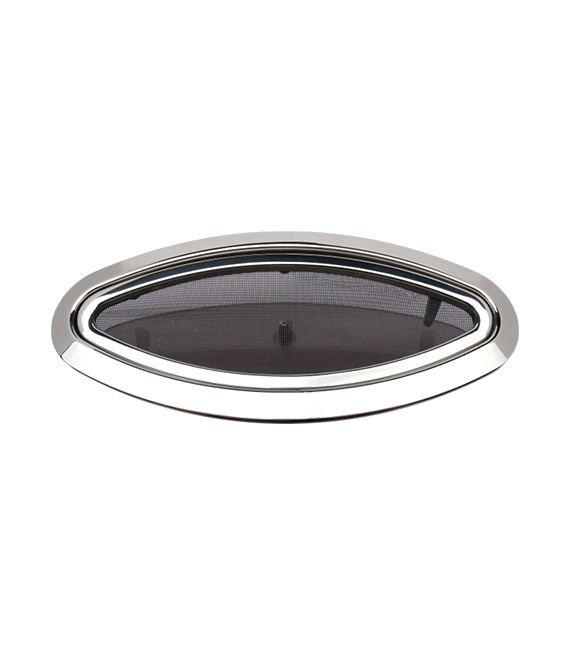

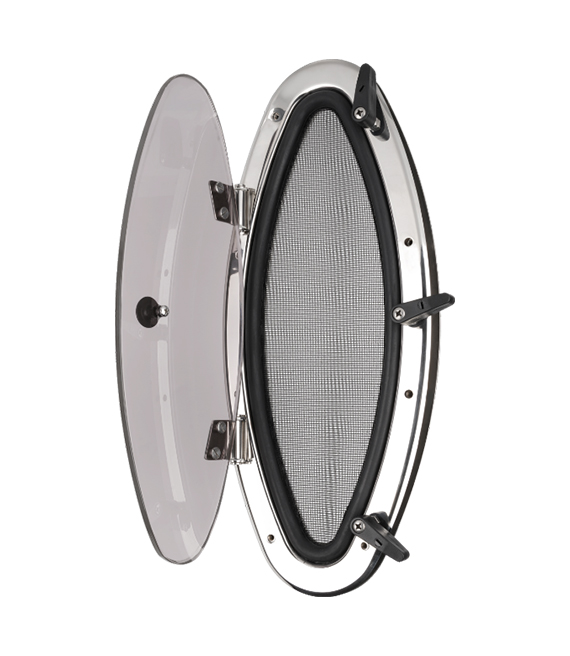

Eyebrow portlight, Eye-shaped porthole,Elliptical portlight, Oval portlight, Teardrop portlight
Frame Size：18"x8"(460x205mm)
Cut-out Size：16.3"x6"(414x156mm)
Height：1.6"(40mm)
Deck Thickness：0.5"(12mm)
Frame material : #316 Stainless Steel Surface Treatment :Mirror Polished Glass Material : Acrylic Color : Smoke Handle Material : Nylon
MORE FEATURES & BENEFITS
• Frame material : #316 Stainless Steel
• Surface Treatment :Mirror Polished
• Glass Material : Acrylic
• Color : Smoke
• Handle Material : Nylon
STANDARD PUMP CONFIGURATIONS
|
Model |
Frame Size |
Cut-out Size |
Height |
Deck Thickness |
|
SFP3-460-03 |
18"x8"(460x205mm) |
16.3"x6"(414x156mm) |
1.6”(40mm) |
0.5"(12mm) |

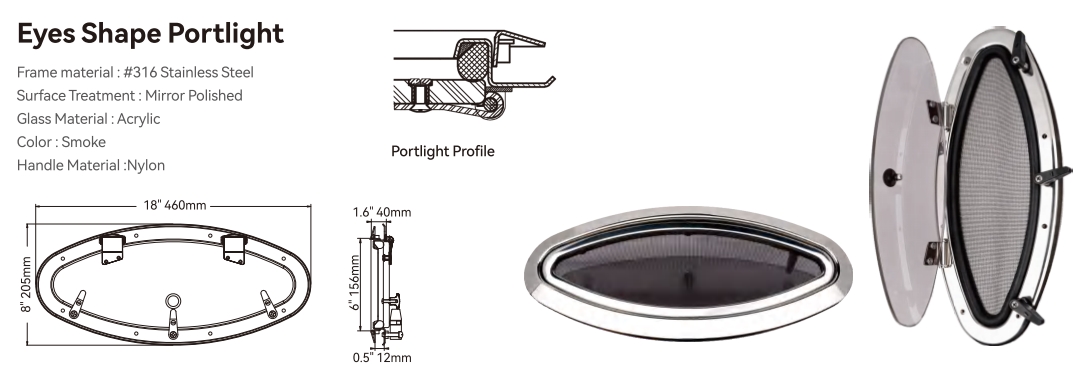

DIMENSIONS
SFP3-460-03
SHIPPING INFORMATION
SFP3-460-03
|
Unit Weight |
4.4 lbs(2 kg) |
|
Selling Unit Size (L x W x H) |
22.83" x 22.83" x 2.76" （48 x 22.5 x 7 cm） |
|
Selling Unit Weight |
4.6 lbs(2.1 kg) |
|
Master Carton Size (L x W x H) |
19.49" x 10.24" x 15.55" (49.5 x 26 x 39.5 cm) |
|
Master Carton Qty |
5 pcs |
|
Master Carton Weight |
25.35 lbs (11.5 kg) |
|
Master Carton Volume |
0.051 m³ |
