Round portlight、Marine Boat Window
Frame Size：∅6.2“(157mm)
Cut-out Size：∅5"(12ómm)
Height：0.8"(20mm)
Deck Thickness：0.3" (7mm)
Model：SFP3-157-02
Frame material : #316 Stainless Steel Surface Treatment :Mirror Polished Glass Material : Acrylic Color : Smoke Handle Material : Nylon
MORE FEATURES & BENEFITS
• Frame material : #316 Stainless Steel
• Surface Treatment :Mirror Polished
• Glass Material : Acrylic
• Color : Smoke
• Handle Material : Nylon
STANDARD CONFIGURATIONS
Model | Frame Size | Cut-out Size | Height | Deck Thickness |
SFP3-157-02 | ∅6.2“(157mm) | ∅5"(12ómm) | 0.8"(20mm) | 0.3" (7mm) |
SFP3-184-02 | ∅7.2"(184mm) | ∅6"(151mm) | 0.8"(20mm) | 0.3" (7mm) |
SFP3-210-02 | ∅8.3"(210mm) | ∅7"(175mm) | 0.8"(20mm) | 0.3" (7mm) |

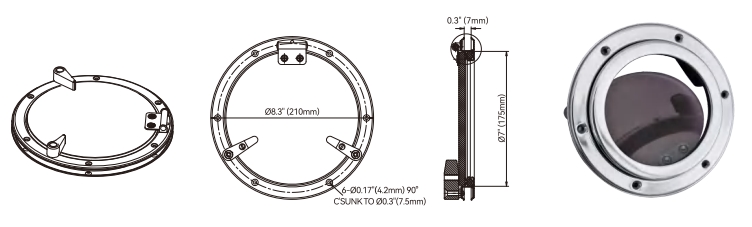

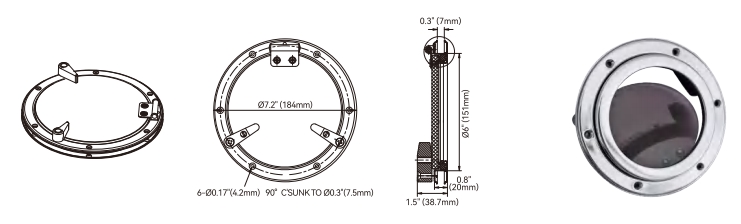

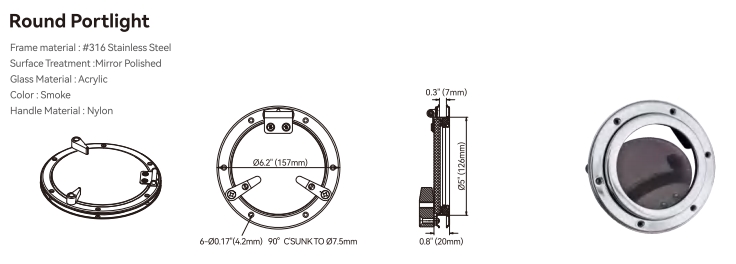

DIMENSIONS
SFP3-157-02
SFP3-184-02
SFP3-210-02
SHIPPING INFORMATION
SFP3-157-02
Unit Weight | 0.9 lbs(0.42 kg) |
Selling Unit Size (L x W x H) | 8.66" x 8.66" x 1.73" （22 x 22 x 4.5 cm） |
Selling Unit Weight | 1.1 lbs(0.52 kg) |
Master Carton Size (L x W x H) | 18.50" x 19.06" x 11.02" (47 x 23 x 28cm) |
Master Carton Qty | 10 pcs |
Master Carton Weight | 12.72 lbs (5.77 kg) |
Master Carton Volume | 0.030 m³ |
SFP3-184-02
Unit Weight | 1.2 lbs(0.53 kg) |
Selling Unit Size (L x W x H) | 8.66" x 8.66" x 1.73" （22 x 22 x 4.5 cm） |
Selling Unit Weight | 1.4 lbs(0.63 kg) |
Master Carton Size (L x W x H) | 18.50" x 19.06" x 11.02" (47 x 23 x 28cm) |
Master Carton Qty | 10 pcs |
Master Carton Weight | 15.48 lbs (7.02 kg) |
Master Carton Volume | 0.030 m³ |
SFP3-210-02
Unit Weight | 1.4 lbs(0.62 kg) |
Selling Unit Size (L x W x H) | 8.66" x 8.66" x 1.73" （22 x 22 x 4.5 cm） |
Selling Unit Weight | 1.6 lbs(0.72 kg) |
Master Carton Size (L x W x H) | 18.50" x 19.06" x 11.02" (47 x 23 x 28cm) |
Master Carton Qty | 10 pcs |
Master Carton Weight | 17.46 lbs (7.92 kg) |
Master Carton Volume | 0.030 m³ |
