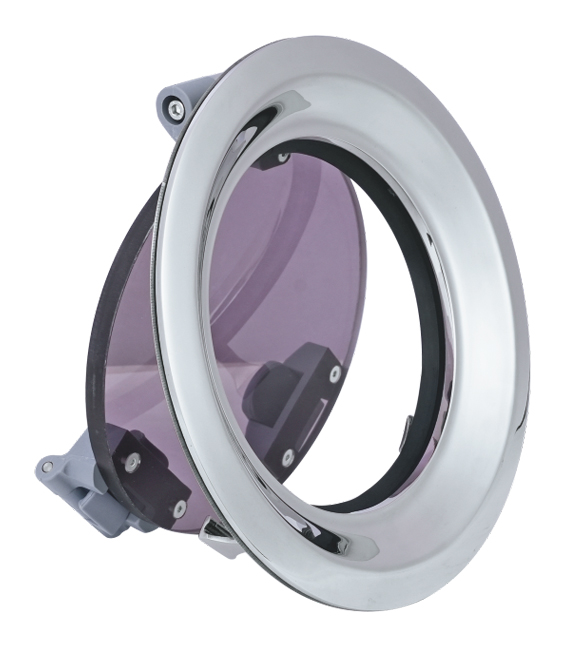

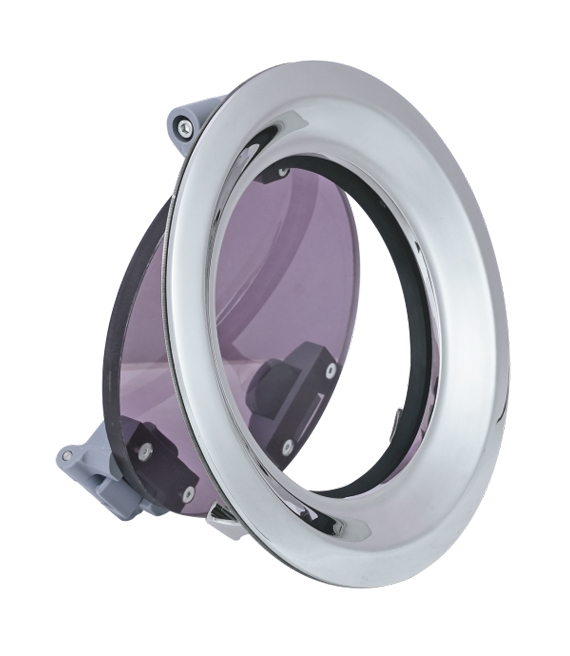

Round portlight、Marine Boat Window
Frame Size：8.5"(220mm)
Cut-out Size：7.8"(198mm)
Height：7.8"(198mm)
Deck Thickness：1.5"(37mm)
Model：SFP3-220-01
Frame material : #316 Stainless Steel Surface Treatment :Mirror Polished Glass Material : Acrylic Color : Smoke Handle Material : Nylon
MORE FEATURES & BENEFITS
• Frame material : #316 Stainless Steel
• Surface Treatment :Mirror Polished
• Glass Material : Acrylic
• Color : Smoke
• Handle Material : Nylon
STANDARD CONFIGURATIONS
Model | Frame Size | Cut-out Size | Height | Deck Thickness |
SFP3-220-01 | 8.5"(220mm) | 7.8"(198mm) | 1.5"(37mm) | 0.4”(10mm) |
SFP3-260-01 | 10'(260mm) | 9.4"(238mm) | 1.5'(37mm) | 0.4"(10mm) |
DIMENSIONS

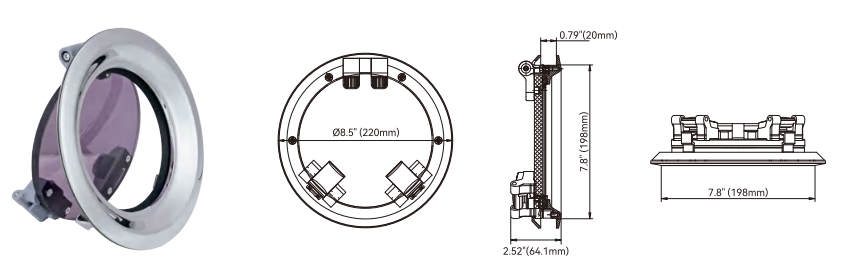

SFP3-220-01

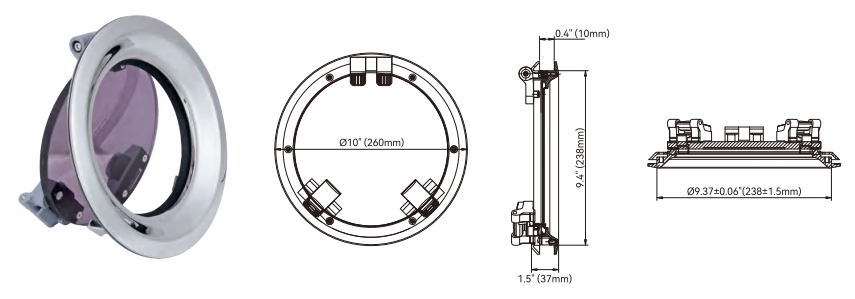

SFP3-260-01
SHIPPING INFORMATION
SFP3-220-01
Unit Weight | 4.0 lbs(1.84 kg) |
Selling Unit Size (L x W x H) | 9.45" x 9.45" x 3.15" （24 x 24 x 8 cm） |
Selling Unit Weight | 4.3 lbs(1.94 kg) |
Master Carton Size (L x W x H) | 10.24" x 10.24" x 7.48" (26x 26 x 19cm) |
Master Carton Qty | 2 pcs |
Master Carton Weight | 9.92 lbs (4.5 kg) |
Master Carton Volume | 0.013 m³ |
SFP3-260-01
Unit Weight | 4.7 lbs(2.12 kg) |
Selling Unit Size (L x W x H) | 10.62" x 10.62" x 3.15" （27 x 27 x 8 cm） |
Selling Unit Weight | 4.9 lbs(2.22 kg) |
Master Carton Size (L x W x H) | 11.41" x 11.41" x 7.48" (29x 29 x 19cm) |
Master Carton Qty | 2 pcs |
Master Carton Weight | 12.12 lbs (5.5 kg) |
Master Carton Volume | 0.016 m³ |
